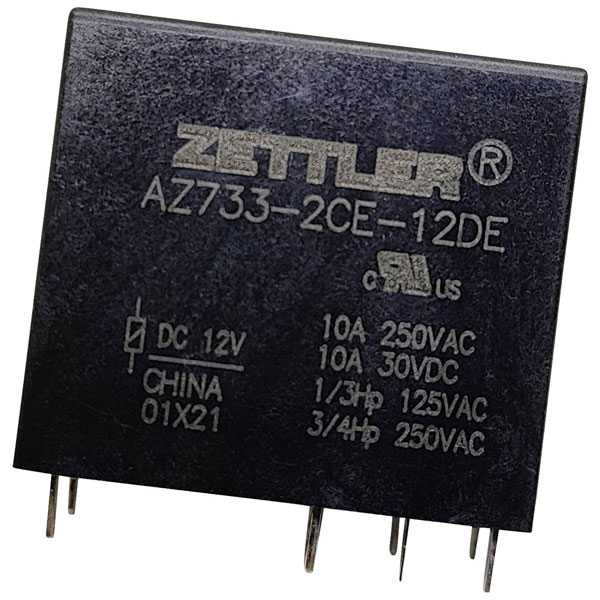

Zettler Electronics AZ733-2CE-12DE PCB Relay 12V DC 12A 2 CO

Zettler Electronics
Order Code:

08-3597

Brand: Zettler Electronics MPN: AZ733-2CE-12DE EAN-13: 4064161192307
Qty Unit Price (Ex VAT)
2+ £3.74
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
310 in stock, despatched in 4 working days

The Zettler Electronics AZ733-2CE-12DE is a PCB relay operating at 12 V DC with a current capacity of 12 A and features 2 change-overs. This mini relay is suitable for mounting on printed circuit boards and is ideal for various electronic applications requiring reliable switching capabilities. Its compact design makes it suitable for use in consumer electronics, industrial equipment, and automotive systems.
Coil Voltage 12V DC
Contact Configuration 2CO (DPDT)
Switching Current 12A
Coil Resistance 275Ω
Connection Solder pins
Contact Material AgSnO
Control Mode monostable, 1 coil
Dimensions (L x W x H) 29 x 13 x 25.9 mm
Height 25.9mm
Insulation Voltage 1000V
Length 29mm
Max. pick-up Voltage 22.8V DC
Max. temperature +85°C
Min. pick-up Voltage 8.4V DC
Minimum Temperature -40°C
Mounting Type PCB
Type PCB relay
Width 13mm
