Zettler Electronics AZ576-1A-24D Relay PCB 24V DC 20A 1pc

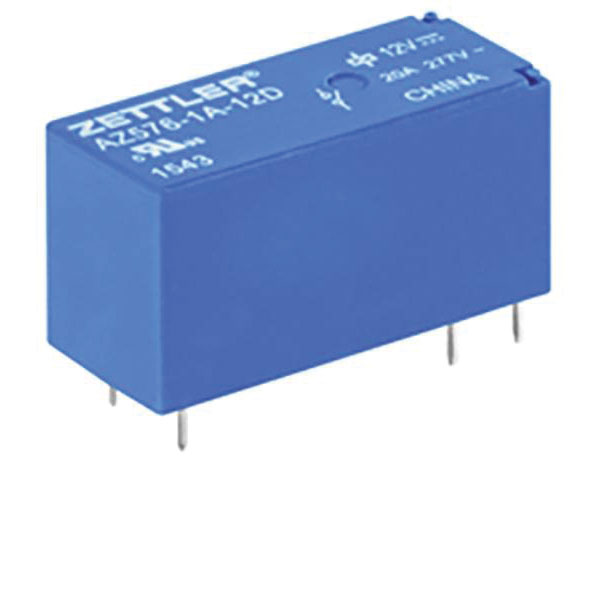

Image Representative of Range

Zettler Electronics AZ576-1A-24D Relay PCB 24V DC 20A 1pc

Zettler Electronics
Standard range
Order Code:

08-3576

Brand: Zettler Electronics MPN: AZ576-1A-24D
Qty Unit Price (Ex VAT)
1+ £1.85
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
7 in stock, despatched in 4 working days

Zettler Electronics manufactures the AZ576-1A-24D, a 24 V DC PCB relay suitable for various electronic applications. This mini relay is designed for printed circuit board mounting, providing reliable switching up to 20 A. It is commonly used in automation systems, control panels, and power management devices.
Type PCB relay
Coil nominal voltage 24V DC
Contact material AgSnO2
Contact type 1 maker
Control mode monostable, 1 coil
Dim (L x W x H) 29.30 x 12.70 x 15.30 mm
Durability 1 x 10E7
Height 15.30mm
Length 29.30mm
Max. pick-up voltage 36V DC
Max. switching capacity 510W
Max. temperature +105°C
Min. pick-up voltage 18V DC
Min. temperature -40°C
Misc Attribute Zettler electronics
Resistance (coil) 1440Ω
Response time 15ms
RoHS-compliant Yes
Switching current (max.) 20
Switching voltage (max.) 30V DC
Width 12.70mm
