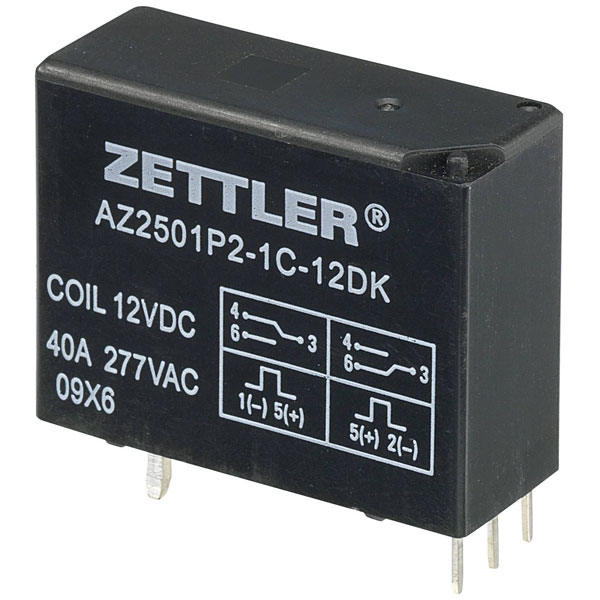

Zettler Electronics AZ2501P2-1C-12DK PCB Relay 12V DC 50A Changeover High Loads

Zettler Electronics
Order Code:

08-3570

Brand: Zettler Electronics MPN: AZ2501P2-1C-12DK EAN-13: 2050001533920
Qty Unit Price (Ex VAT)
1+ £8.55
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
636 in stock, despatched in 4 working days

The Zettler Electronics AZ2501P2-1C-12DK is a PCB relay designed for a 12 V DC operation with a capacity of 50 A and features a single change-over contact. This mini relay is suited for mounting on printed circuit boards, providing efficient switching for various electrical applications. It is typically used in automotive systems, industrial control, and home appliances.
Coil Voltage 12V DC
Contact Configuration 1CO (SPDT)
Switching Current 50A
Coil Resistance 48O
Connection Solder pins
Contact Material AgSnO
Control Mode Bistable, 2 Coils
Dimensions (L x W x H) 39.3 x 15.3 x 30.5 mm
Height 30.5mm
Insulation Voltage 1500V
Length 39.3mm
Max. pick-up Voltage 15.6V DC
Max. switching capacity 13850VA
Max. temperature +70°C
Min. pick-up Voltage 9.6V DC
Minimum Temperature -40°C
Mounting Type PCB
Switching Voltage Max 440V AC
Type PCB relay
Width 15.3mm
