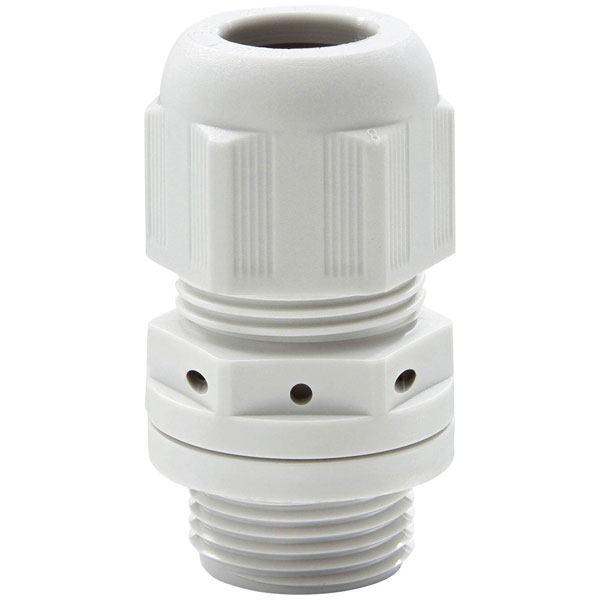

Wiska 10100666 Gland shockproof with strain relief M25 Polyamide Light Grey

A microporous, liquid-tight and breathable ePTFE membrane is integrated into the breathing cable gland. Despite water permeability, a membrane is able to exchange air and thus avoid the difference in pressure between the inside of the housing and the environment. The cause of condensation is thus eliminated. The patented product is cable gland and pressure compensation in one. Optimum sealing and strain relief by special WISKA lamellae system with enlarged contact surfaces and large sealing range. Sealing to the housing by additional EPDM O-ring. Available in various sizes and materials.

Colour	Grey-white (RAL 7035)
Material	Polyamide
Type	Strain Relief
Clamp Ø	9mm
External thread	M25
Halogen free	Yes
Max. temperature	+100°C
Min. temperature	-40°C
Misc Attribute 2	ESVG 25
Spanner size	29mm
Terminal Ø (max.)	17mm
