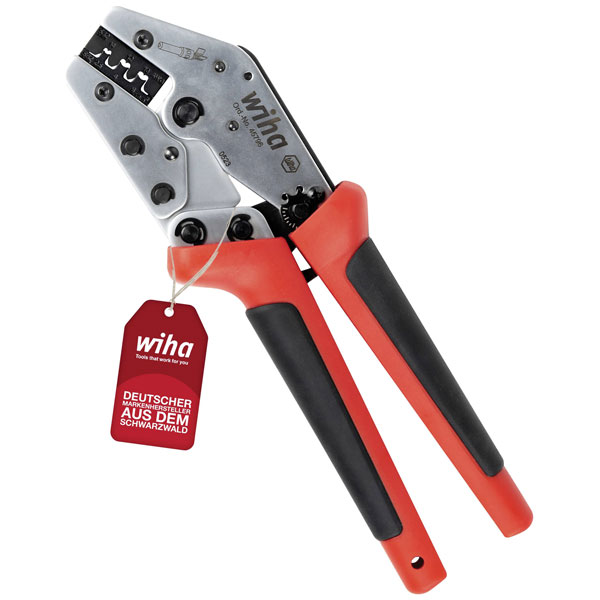

Wiha 45796 Crimp Tool for MC4 connectors 2,5 - 6 mm²

The smooth operation of photovoltaic systems depends largely on the quality of the electrical connections between solar modules and the inverter. A precise and reliable crimp connection plays a decisive role here. The Wiha MC4 Solar Plug Tool is a photovoltaic crimp tool that can be used to easily crimp solar cables with a diameter of 2.5/10 mm² (14 |12 | 4/6 AWG). When crimping, the pressure automatically adjusts to the different cross-sections and it is ensured that the crimping process is completed correctly and completely. Thanks to emergency release function, the crimping can be terminated manually at any time. Moreover, the crimp pliers offer an optimum view of the crimping process for right as well as left-handed persons thanks to screwed crimp inserts. Beyond that the ergonomic and slip-proof soft hand grips with slide protection enable a comfortable working. The PV crimping tool with knee lever mechanism provides high power transmission and thus simplifies your work. For the assembly and installation as well as the repair and service of photovoltaic-systems and the infrastructure, such as battery storage units or inverters.

Type	Crimp Tool
Length	250mm
Crimp area	2.5 up to 6 mm²
Crimp area (max.)	6mm²
Crimp area (min.)	2.5mm²
Crimp area AWG	14 up to 10 awg
Crimp area AWG (max.)	14AWG
Crimp area AWG (min.)	10AWG
