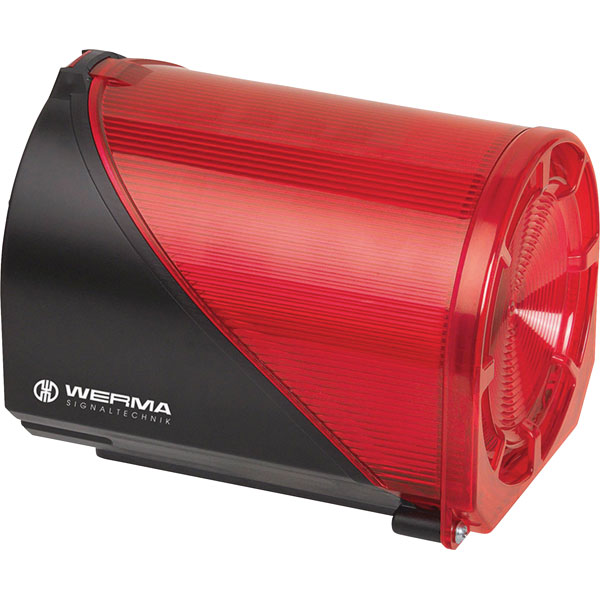

Werma Signaltechnik LED Double Flash/Multi-Tone Sounder Combination, Red

Werma Signaltechnik Brand: Werma Signaltechnik

A range of Werma Signaltechnik LED Double Flash/Multi-Tone Sounder Combination Siren/Beacons from the 444 Series. The various mounting possibilities for these LED EVS Siren/beacons are numerous. They can be mounted on a wall, floor or even a ceiling, enabling optimal visibility of the LED double flash and an optimal sound propagation. Optical and acoustic signal can be controlled separately.

These Multi-Tone Sounders offer a large choice of 32 international signal tones for the widest spectrum of applications. They are ideal for generating the highest awareness levels and when immediate action is required.

  • Multi-Tone Sounder in combination with LED Double Flash
  • Sound output adjustable up to 114dB
  • 32 tones for a diverse range of applications
  • 3 Tones can be triggered externally
  • Optical and audible signal can be triggered separately
  • Random sequence of light signals prevents acclimatisation effect
  • Supplied with Red dome
  • Available with an input voltage of 24V DC, 115V DC and 230V AC
  • Manufacturer's part: Werma Signaltechnik LED Double Flash/Multi-Tone Sounder Combination
Description Image Product Buy Pricing (Ex VAT) Current Voltage Type Colours Sound Output
Werma Signaltechnik 444.110.68 LED EVS Element 32 Tone 230 VAC Red
Werma Signaltechnik 444.110.68 LED EVS Element 32 Tone 230 VAC Red
Extended range
Order code: 63-9162
MPN: 444.110.68

Available to back orderBack order, lead time 10 days
1+ £295.08
Price per unit Ex VAT 		30mA 230V Beacon / siren Red 114dB
Werma Signaltechnik 444.110.75 LED EVS Element 32 Tone 24VDC Red
Werma Signaltechnik 444.110.75 LED EVS Element 32 Tone 24VDC Red
Extended range
Order code: 63-9163
MPN: 444.110.75

Available to back orderBack order, lead time 3 weeks
1+ £264.11
Price per unit Ex VAT 		200mA 24V Beacon / siren Red 114dB
Mftrs. Part No:444.110.67444.110.68444.110.75
Order code:63-916163-916263-9163
Connection:CAGE CLAMP technologyCAGE CLAMP technologyCAGE CLAMP technology
Wire size:up to 2.5mm² single wireup to 2.5mm² single wireup to 2.5mm² single wire
Fixing:Base/Bracket mountingBase/Bracket mountingBase/Bracket mounting
Flash frequency:approx. 1Hzapprox. 1Hzapprox. 1Hz
Colour:RedRedRed
Cable entry:Diaphragm bushingDiaphragm bushingDiaphragm bushing
Cable diameter:max. 13mmmax. 13mmmax. 13mm
Sound output:114dB114dB114dB
Protection rating:IP65IP65IP65
Voltage:115V AC230V AC24V DC
Voltage type:ACACDC
Current consumption Optical:max.30mAmax. 30mAmax.80mA
Current consumption Audio:audio: max.55mAaudio: max 30mAaudio: max.200mA
Temperature range:-30°C to +50°C-30°C to +50°C-30°C to +50°C
Tone type:32 tones32 tones32 tones
Tone frequency:approx. 300 - 4000Hzapprox. 300 - 4000Hzapprox. 300 - 4000Hz
Housing material:PC/ABS-BlendPC/ABS-BlendPC/ABS-Blend
Lens:PCPCPC
Signal effect:LED-EVSLED-EVSLED-EVS
Width:109mm109mm109mm
Height:150mm150mm150mm
Depth:112mm112mm112mm
Net weight:470g470g327g
