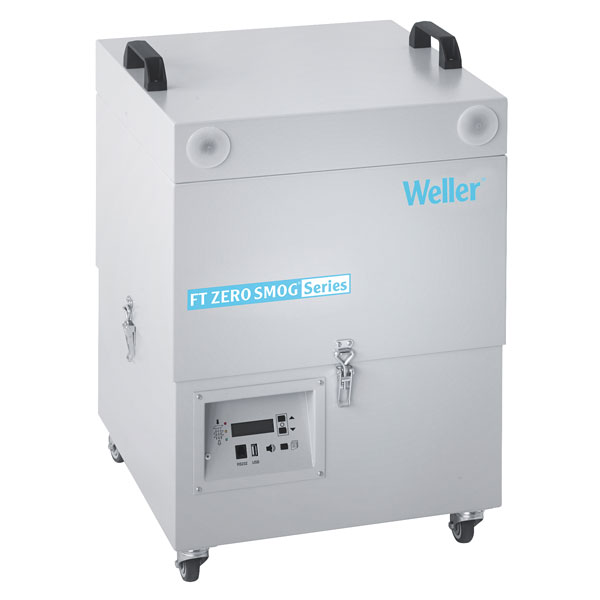

The Weller Zero Smog 20T fume extractor can support up to 20 fume extraction soldering irons using the Weller Pipe System 50 (sold separately). Alternatively, up to 6 fume extraction soldering irons can be connected directly to the unit.
The powerful maintenance-free turbine generates a vacuum of 10.000 Pa and is electronically controlled. Operating hours and filter contamination level are also recorded electronically. The filter system achieves a filtration rate of 99.95% as per EN 1822 with a particle size of 0.16µm.
Up to 20 FE fume extraction soldering irons can be connected
Electrically driven, maintenance-free turbine produces the required vacuum
Mobile unit for central and stand alone applications
Central installation for 50mm pipe systems up to 200m length possible
