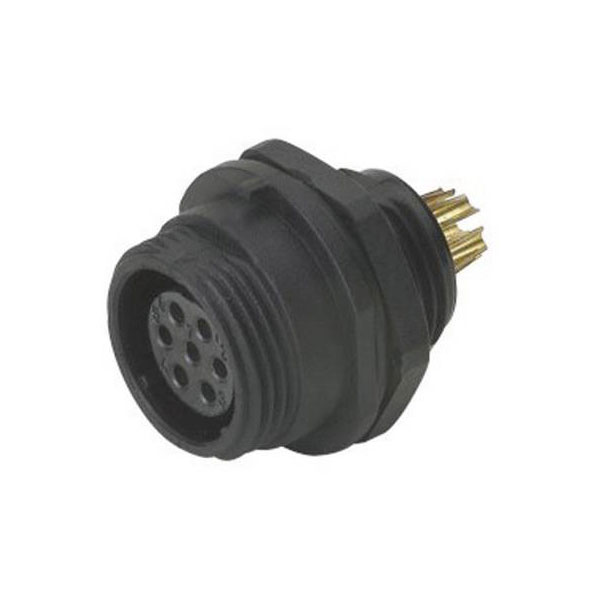

Weipu SP1312/S9 SP13 Connector Socket 9 Pins Screw Lock UV Resistant

Image Representative of Range

Weipu SP1312/S9 SP13 Connector Socket 9 Pins Screw Lock UV Resistant

Weipu
Standard range
Order Code:

13-5296

Brand: Weipu MPN: SP1312 / S 9 EAN-13: 2050001514592
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
125 in stock, despatched in 4 working days

Weipu's SP1312 / S 9 connector is a built-in bullet socket with nine pins, part of the SP13 series. This round connector is designed for robust and secure connections in electronics applications. It is typically used in industrial and outdoor environments due to its durability and reliable performance.
Type Bullet connector
AWG 18
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, built-in
Contact material Gold plated
Cross-section range 0.785 mm² (max)
Factory colour Black
IP rating IP68
max. cross section 0.785mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Mounting hole diameter 13mm
Nominal current 3A
Nominal current - rounded value 3A
Nominal voltage 600V
Number of pins 9
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 9
