Weipu SP1312/S6 SP13 Bullet Connector 6 Pins Built-in Screw Locking

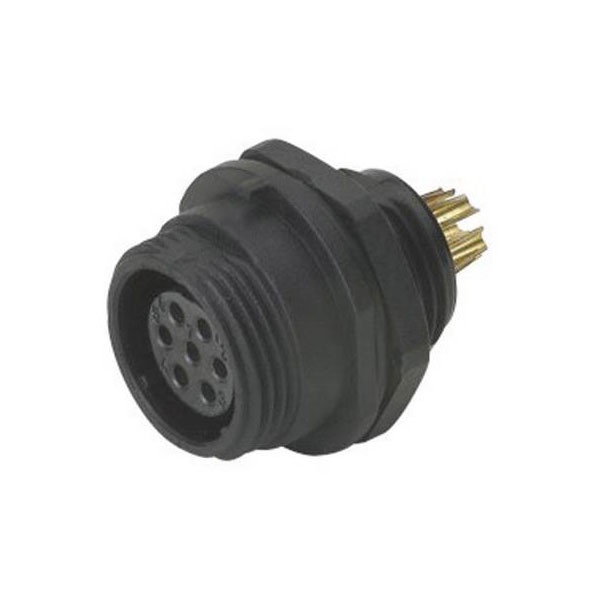

Image Representative of Range

Weipu SP1312/S6 SP13 Bullet Connector 6 Pins Built-in Screw Locking

Weipu
Order Code:

13-5294

Brand: Weipu MPN: SP1312 / S 6 EAN-13: 2050001514578
Qty Unit Price (Ex VAT)
2+ £3.31
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
Available to back orderBack order, lead time 3 weeks

The Weipu SP1312/S 6 bullet connector is a built-in socket with six pins, part of the SP13 series of round connectors. Manufactured by Weipu, this connector is known for its durability and reliable electrical connections. It is typically used in industrial and outdoor environments where secure and stable connectivity is essential.
Type Socket, built-in
Number of Contacts 6
Case Material PPS
Colour Black
Connection Soldering
Connection Angle 180°
Contact Material Gold plated
Cross-section range 0.758 mm² (max)
Current Rating 5A
IP Rating IP68
max. cross section 0.758mm²
Max. temperature +125°C
Min. temperature -55°C
Mounting Hole Diameter 13mm
Nominal Voltage 600V
Series SP13
Termination Screw-type locking
Wire Gauge (AWG) 18
