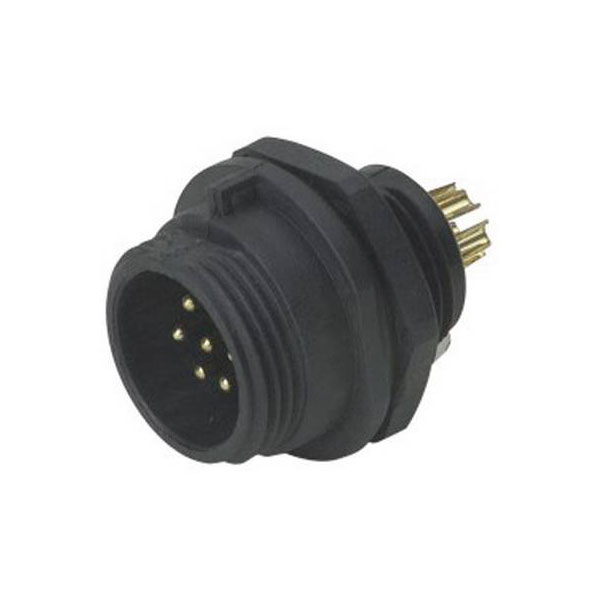

Weipu SP1312/P9 SP13 Connector Plug 9 Pins Screw Lock UV Resistant

The Weipu SP1312 / P 9 is a bullet connector plug with a total of 9 pins, designed for easy mounting. As part of the SP13 series of round connectors, it is ideal for use in secure and reliable electrical connections. This product is commonly used in industrial and outdoor environments due to its robust design.

Type	Plug, mount
Number of Contacts	9
Connector Size	20 mm dia
Gender	Plug
Case Material	PPS
Colour	Black
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	0.758 mm² (max)
Current Rating	30A
IP Rating	IP68
max. cross section	0.758mm²
Mounting Hole Diameter	13mm
Nominal Voltage	230V
Series	SP13
Termination	Screw-type locking
Wire Gauge (AWG)	18
