Weipu SP1312/P3 SP13 Bullet Connector Plug Mount 3-Pin UV & Water Resistant

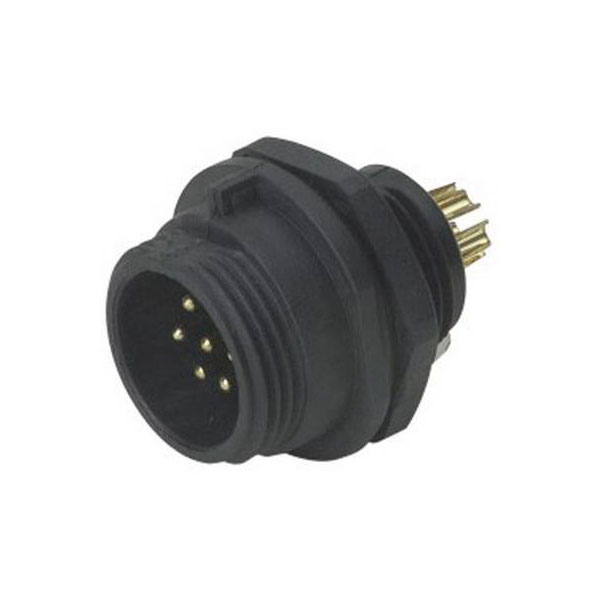

Image Representative of Range

Weipu SP1312/P3 SP13 Bullet Connector Plug Mount 3-Pin UV & Water Resistant

Weipu
Standard range
Order Code:

13-5284

Brand: Weipu MPN: SP1312 / P 3 EAN-13: 2050001514479
Qty Unit Price (Ex VAT)
2+ £2.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
28 in stock, despatched in 4 working days

The Weipu SP1312/P 3 is a bullet connector plug from the SP13 series, featuring three pins for effective connectivity. As a durable and reliable component, it is typically used in industrial and outdoor applications. Manufactured by Weipu, this connector ensures secure and stable connections for versatile electrical systems.
Type Bullet connector
AWG 14
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, mount
Contact material Gold plated
Cross-section range 2 mm² (max)
Factory colour Black
IP rating IP68
max. cross section 2mm²
Max. temperature +125°C
Min. temperature -55°C
Misc Attribute Weipu Connector
Mounting hole diameter 13mm
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 600V
Number of pins 3
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 3
