Weipu SP1311/S3I SP13 Socket Straight 3 Pins Waterproof UV Resistant

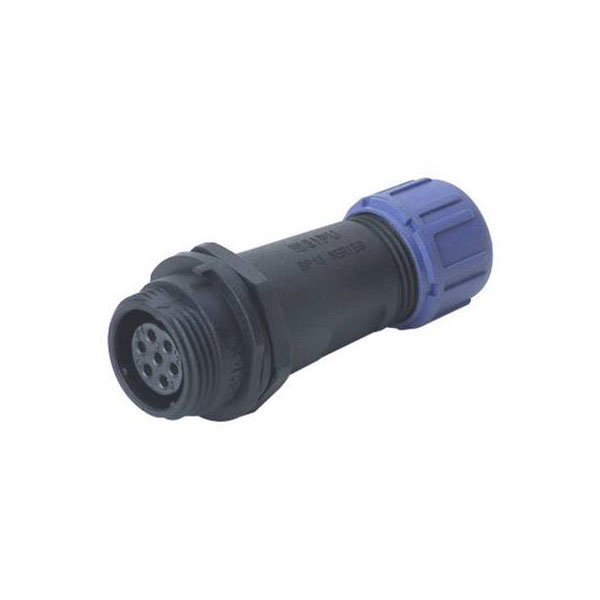

Image Representative of Range

Weipu SP1311/S3I SP13 Socket Straight 3 Pins Waterproof UV Resistant

Weipu
Standard range
Order Code:

13-5276

Brand: Weipu MPN: SP1311 / S 3 I EAN-13: 2050001514394
Qty Unit Price (Ex VAT)
2+ £3.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
116 in stock, despatched in 4 working days

The Weipu SP1311 / S 3 I is a bullet connector socket, straight, with three pins, part of the SP13 series of round connectors. Produced by Weipu, it is ideal for reliable electrical connections in industrial and outdoor environments due to its robust design. This connector is commonly used in applications where durability and secure connections are essential, such as in lighting systems and automotive industries.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Socket, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Misc Attribute Weipu Connector
Nominal current 13A
Nominal current - rounded value 13A
Nominal voltage 250V AC
Number of pins 3
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 3
