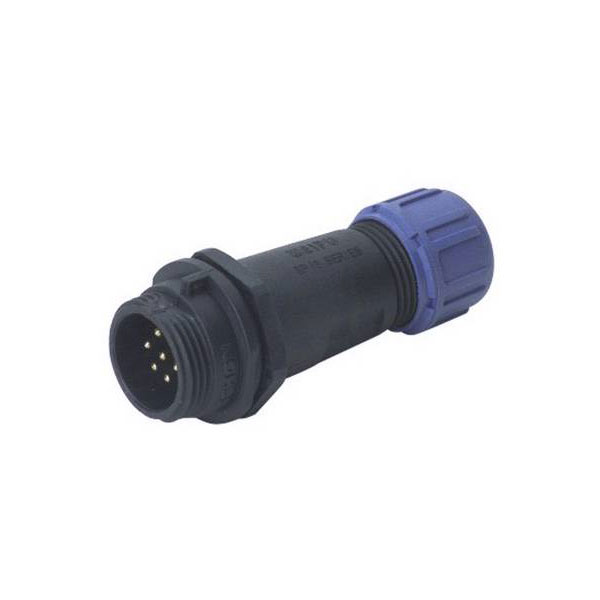

Weipu SP1311/P3I SP13 Bullet Connector Plug Straight 3 Pins UV Resistant

Image Representative of Range

Weipu SP1311/P3I SP13 Bullet Connector Plug Straight 3 Pins UV Resistant

Weipu
Standard range
Order Code:

13-5268

Brand: Weipu MPN: SP1311 / P 3 I EAN-13: 2050001514318
Qty Unit Price (Ex VAT)
2+ £3.34
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
163 in stock, despatched in 4 working days

Weipu is the manufacturer of the SP1311 / P 3 I bullet connector, a straight plug with three pins, part of the SP13 round connector series. This connector is suitable for applications requiring secure and reliable electrical connections, such as industrial equipment and outdoor lighting. Its robust design ensures durability in challenging environmental conditions.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +100°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 20A
Nominal current - rounded value 20A
Nominal voltage 250V
Number of pins 3
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 3
