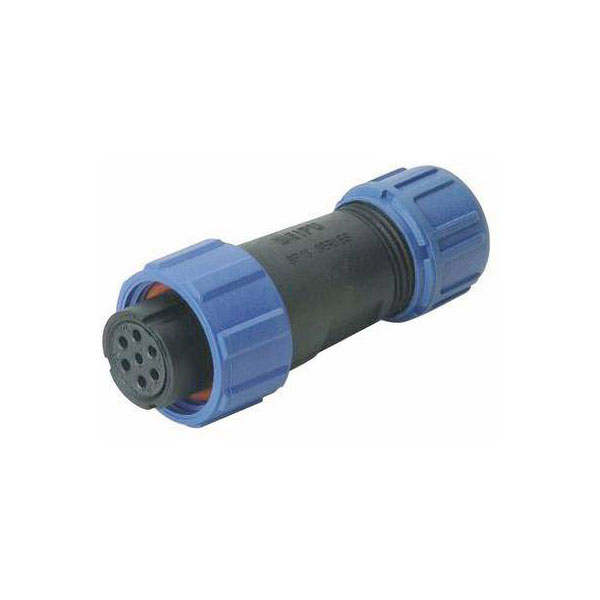

Weipu SP1310/S3I SP13 Bullet Connector 3 Pin Socket Straight UV Resistant

The Weipu SP1310 / S 3 I bullet connector is a straight socket featuring three pins, part of the SP13 series of round connectors. Manufactured by Weipu, this connector is designed for reliable electrical connections in various industrial applications. It is typically used in environments requiring robust and water-resistant connectivity solutions.

Type	Socket, straight
Number of Contacts	3
Connector Size	20 mm dia
Gender	Socket
Cable Ø (max.)	6.5mm
Cable Ø range	4 - 6.5mm
Cable Ø up to	4mm
Case Material	PPS
Connection	Soldering
Connection Angle	180°
Contact Material	Gold plated
Cross-section range	2 mm² (max)
Current Rating	6A
IP Rating	IP68
max. cross section	2mm²
Max. temperature	+70°C
Min. temperature	-20°C
Nominal Voltage	277V
Series	SP13
Termination	Screw-type locking
Wire Gauge (AWG)	14
