Weipu SP1310/P2I SP13 Bullet Connector 2 Pins Straight UV Resistant

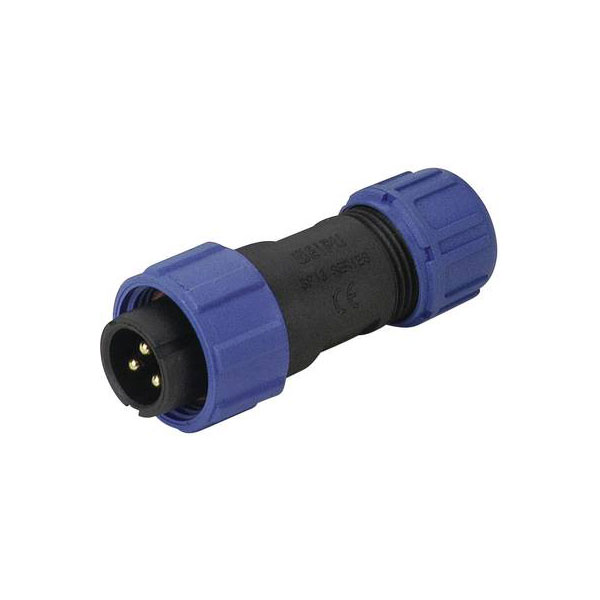

Image Representative of Range

Weipu SP1310/P2I SP13 Bullet Connector 2 Pins Straight UV Resistant

Weipu
Standard range
Order Code:

13-5251

Brand: Weipu MPN: SP1310 / P 2 I EAN-13: 2050001514141
Qty Unit Price (Ex VAT)
2+ £2.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
493 in stock, despatched in 4 working days

The Weipu SP1310 / P 2 I bullet connector is a straight plug from the SP13 series, featuring two pins. Manufactured by Weipu, this connector is suitable for applications requiring reliable electrical connections. Typical uses include industrial equipment, outdoor lighting, and communications devices where secure and waterproof connections are necessary.
Type Bullet connector
AWG 14
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 2 mm² (max)
IP rating IP68
max. cross section 2mm²
Max. temperature +70°C
Min. temperature -20°C
Misc Attribute Weipu Connector
Nominal current 10A
Nominal current - rounded value 10A
Nominal voltage 277V
Number of pins 2
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 2
