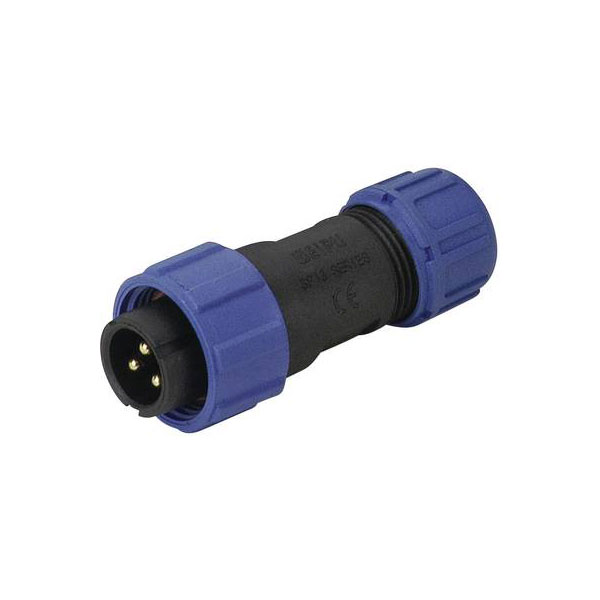

Weipu SP1310/P 4 I SP13 Plug Straight 4 Pins Waterproof UV Resistant

Image Representative of Range

Weipu SP1310/P 4 I SP13 Plug Straight 4 Pins Waterproof UV Resistant

Weipu
Standard range
Order Code:

13-5253

Brand: Weipu MPN: SP1310 / P 4 I EAN-13: 2050001514165
Qty Unit Price (Ex VAT)
1+ £2.94
Price per unit {{ IncVat ? 'Inc' : 'Ex' }} VAT
477 in stock, despatched in 4 working days

The Weipu SP1310/P4I is a straight bullet connector plug featuring four pins, part of the SP13 series of round connectors. Manufactured by Weipu, this connector is designed for secure, reliable electrical connections. It is typically used in industrial and outdoor applications due to its robust design and performance.
Type Bullet connector
AWG 18
Cable Ø (max.) 6.5mm
Cable Ø range 4 - 6.5 mm
Cable Ø up to 4mm
Case material PPS
Connection Soldering
Connection angle 180°
Connector type Plug, straight
Contact material Gold plated
Cross-section range 0.785 mm² (max)
IP rating IP68
max. cross section 0.785mm²
Max. temperature +85°C
Min. temperature -40°C
Misc Attribute Weipu Connector
Nominal current 32A
Nominal current - rounded value 32A
Nominal voltage 600V
Number of pins 4
RoHS-compliant Yes
Seal Screw-type locking
Series SP13
Total no. of pins 4
