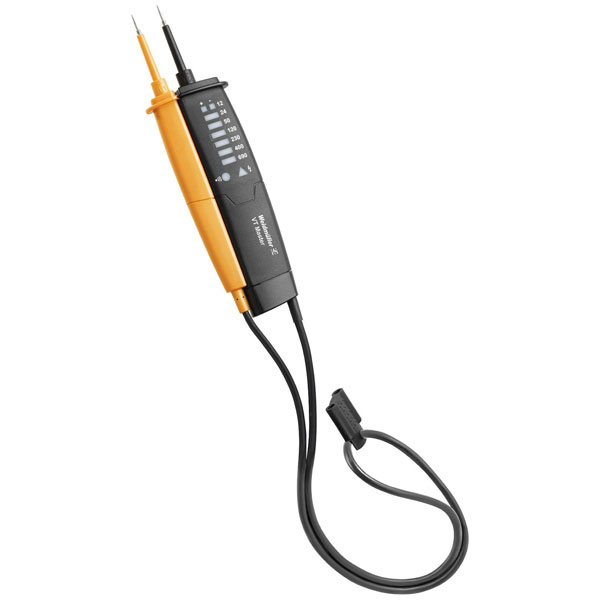

The Weidmüller VT MASTER two-pole voltage tester is a robust and reliable tool designed for voltage testing with a CAT III 600 V rating. Its LED indicators provide clear and immediate readings, ensuring precision in both residential and industrial applications. Ideal for electricians and technicians, the tester is suited for verifying electrical connections and ensuring safety in electrical installations.
| Maximum Voltage |
400V |
| Display Type |
LED |
| AC voltage display |
12, 24, 50, 120, 230, |
| AC voltage measuring range |
12-690 V |
| Background lighting LC-indication |
false |
| Battery type |
1.5 V type AAA battery |
| Calibrated |
Manufacturer's standards (no certificate) |
| Continuity indication |
Optical/acoustic |
| Continuity test |
true |
| Current supply |
Battery |
| Data hold |
false |
| DC voltage display |
12, 24, 50, 120, 230, |
| DC voltage measuring range |
690 V |
| Depth |
60mm |
| Depth (inches) |
2.3622 inch |
| Description of article |
Voltage tester up to 690 |
| Dimensions |
(L x W x H) 28 x 60 x 235 mm |
| Display |
LED |
| ECLASS 14 |
27-20-03-08 |
| ECLASS 15.0 |
27-20-03-08 |
| ETIM 10 |
EC000494 |
| ETIM 8.0 |
EC000494 |
| ETIM 9.0 |
EC000494 |
| Frequency Range |
0 Hz - 65 Hz |
| Frequency range, max. |
65 Hz |
| Frequency range, min. |
0 Hz |
| GTIN (EAN) |
4032248405763 |
| Height |
235mm |
| Height (inches) |
1.1024 inch |
| Hold function |
No |
| Indication of direction of field rotation |
false |
| Insulation test |
6 kV |
| Insulation Test Voltage |
CAT III |
| Internal base load |
false |
| IP Rating |
IP54 |
| Length |
28mm |
| Length (inches) |
9.252 inch |
| Load switchable |
false |
| Max. frequency |
65Hz |
| Measuring circuit category |
CAT III |
| Measuring point lightning |
false |
| Measuring range category |
CAT III 600 V |
| Min. frequency |
0Hz |
| Misc Attribute |
VT MASTER |
| Net weight |
158g |
| Peak voltage resistance |
6 kV |
| Phase sequence display |
No |
| Probe tip protection |
true |
| Protection degree |
IP54 |
| Rated voltage, max. |
690 V AC/DC |
| Rated voltage, min. |
12 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reading Category |
CAT III 600 V |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| SCIP |
b05b5122-6117-4cb0-b28c-df32f921fa36 |
| Single pole phase indication |
false |
| Test probe illumination |
No |
| Test probe protection GS 38 |
Yes |
| Tested and approved according to |
IEC 61243-3:2014 (DIN |
| Type |
Two-pole voltage tester |
| Type of test |
2-pole |
| Usable at precipitation |
false |
| V AC reading range (min.) |
12V |
| Version |
Testing tools, 2-pole voltage tester |
| Voltage indication |
LED |
| Weight |
181g |
| Width |
60mm |
| Width (inches) |
9.252 inch |
| Working temperature, max. |
55°C |
| Working temperature, min. |
-15°C |
