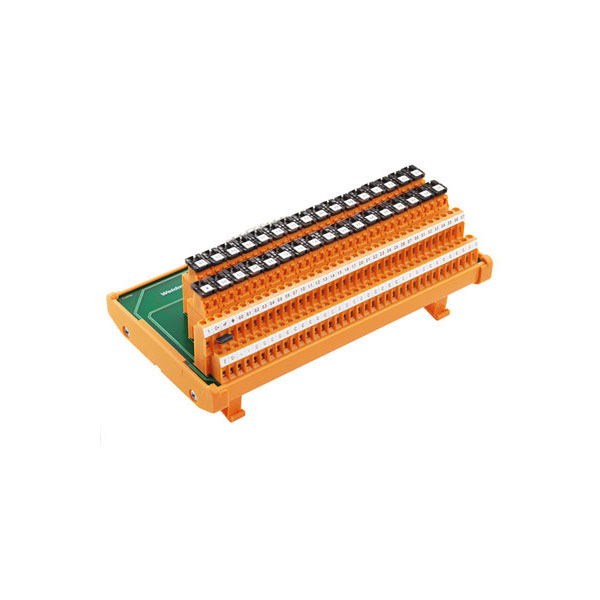

Weidmüller manufactures the Interface Module LL2N with a 5.08mm pitch for reliable electrical connectivity. It features easy-to-use plug-in technology and ensures secure connections for industrial applications. Typically used in automation systems, this product supports efficient signal distribution and management.
| Type |
Interface module |
| Termination |
Plugable/ Cage Clamp |
| Wire Gauge |
4mm² |
| Access Time |
15ns |
| According to |
DIN EN 50178 |
| Approvals |
CE |
| Available until |
2014-05-20T00:00:00+02:00 |
| Bus Directional |
Unidirectional |
| Certificate No. (UR) |
E141197 |
| Clamping range, max. |
6mm² |
| Clamping range, min. |
0.13mm² |
| Common pole polarity |
Positive or negative can be |
| Connection (field side) |
LL2N 5.08mm |
| Connection on control side |
Connector RSV 1.6 |
| Delivery status |
Discontinued |
| Depth |
84mm |
| Depth (inches) |
3.3071 inch |
| Disconnection per channel |
No |
| ECLASS 14 |
27-14-11-52 |
| ECLASS 15.0 |
27-14-11-52 |
| ETIM 10 |
EC002780 |
| ETIM 8.0 |
EC002780 |
| ETIM 9.0 |
EC002780 |
| Ferrule with plastic collar, max. |
2.5mm² |
| Flexible with sleeve, max. |
2.5mm² |
| Flexible with sleeve, min. |
0.5mm² |
| Flexible, max. H05(07) V-K |
4mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| Fuse per channel |
2 A |
| FWFT Support |
No |
| GTIN (EAN) |
4032248253821 |
| Height |
84mm |
| Height (inches) |
4.2913 inch |
| Insulation test voltage AC |
1.1 kV |
| LED status display per channel |
No |
| LED status of the supply voltage |
No |
| Length |
200mm |
| Max Supply Current |
60mA |
| Max. current per channel |
1 A |
| Max. wire cross-section, AWG |
AWG 12 |
| Maximum Operating Temperature |
70°C |
| Min. wire cross-section, AWG |
AWG 26 |
| Minimum Operating Temperature |
0°C |
| Mount |
Surface Mount |
| Net weight |
670g |
| Number of poles (control side) |
36-pole female |
| Operating Supply Voltage |
150V |
| Operating Temperature |
-25...50°C |
| Operating temperature UL, max. |
25°C |
| Operating temperature UL, min. |
0°C |
| Operating Voltage |
150 V UC |
| Package Quantity |
750 |
| Package/Case |
LCC |
| Packaging |
Tape and Reel |
| Polarity |
Positive, Negative |
| Pollution severity level |
2 |
| Power supply fuse |
3.15 A |
| Programmable Flags Support |
No |
| Pulse voltage test (1,2/50µs) |
1.5 kV |
| Qty. |
1 items |
| Rated current (supply) |
3 A |
| Rated current fuse (channel) |
2 A |
| Rated current fuse (supply) |
3.15 A |
| Rated current Imax |
1 A |
| Rated current In |
1 A |
| Rated insulation voltage |
<150 V AC |
| Rated voltage DC UN (supply) |
24 V |
| Rated voltage fuse UN (channel) |
250 V |
| Rated voltage fuse UN (supply) |
250 V |
| Rated voltage UN |
142 V |
| REACH SVHC |
Lead 7439-92-1 |
| Retransmit Capability |
Yes |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
7b5ffb72-271d-4c73-8b09-bd0aaee3697a |
| Series |
72V |
| Sleeve with plastic collar, max. |
2.5mm² |
| Solid, max. H05(07) V-U |
6mm² |
| Solid, min. H05(07) V-U |
0.5mm² |
| Storage temperature |
-40...60°C |
| Stripping length |
6mm |
| Surge voltage category |
II |
| Tightening torque, max. |
0.6 Nm |
| Tightening torque, min. |
0.5 Nm |
| Total operating current |
3 A |
| Type of connection |
Screw connection |
| Type of test point |
No |
| UL File Number Search |
UL Website |
| Version |
Interface, RS, Fuse, 2-wire, Screw connection |
| Voltage Rating |
150V |
| Width |
109mm |
| Width (inches) |
7.874 inch |
| Wire cross-section, max. AWG |
AWG 12 |
| Wire cross-section, min. AWG |
AWG 26 |
| Wiring system |
2-wire |
