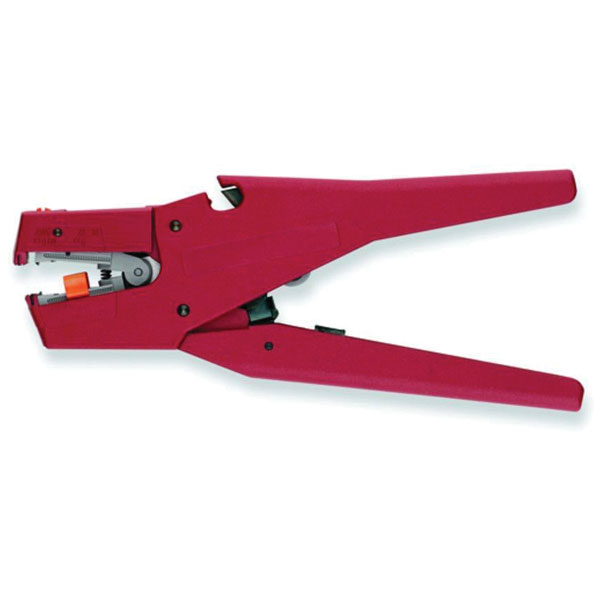

The Weidmüller STRIPPER 6 9046240000 is an automatic wire stripper designed for cables ranging from 0.08 to 6 mm². It efficiently strips wire sizes between 10 and 28 AWG, making it ideal for various electrical and wiring tasks. This tool is suitable for professionals who need precision and ease when working on electrical installations.
| Type |
Automatic stripper |
| Cable Type |
Flexible and solid |
| Conductor cross-section, max. |
6mm² |
| Conductor cross-section, min. |
0.08mm² |
| Depth |
19mm |
| Depth (inches) |
0.748 inch |
| Depth of notch adjustable |
false |
| Description of article |
Stripping tool for wires up |
| ECLASS 14 |
21-04-37-06 |
| ECLASS 15.0 |
21-04-37-06 |
| ESD tested |
false |
| ETIM 10 |
EC002109 |
| ETIM 8.0 |
EC002109 |
| ETIM 9.0 |
EC002109 |
| Grip design |
2-components |
| GTIN (EAN) |
4032248298648 |
| Handle cover |
Plastic grips |
| Height |
87mm |
| Height (inches) |
3.4252 inch |
| Insulated |
true |
| Isolation protection 1000 V |
false |
| Length |
19mm |
| Length stop (max.) |
20mm |
| Length stop range |
20 mm (max) |
| Longitudinal section |
false |
| Net weight |
158.4g |
| Operating range (AWG cross section) (max.) |
10AWG |
| Operating range (AWG cross section) (min.) |
28 |
| Operating range (AWG diameter) |
10 up to 28 |
| Operating range (cross section) (max.) |
6mm² |
| Qty. |
1 items |
| railway and rail traffic, wind energy, robot technology, |
Order No. |
| REACH SVHC |
Lead 7439-92-1 |
| RoHS Compliance Status |
Not affected |
| Round edge |
false |
| SCIP |
cf06c250-ed1e-4a45-9c1b-c5c8cbf13bf0 |
| Spiral cut |
false |
| Strip length adjustable |
true |
| Strip range AWG |
28 - 10 |
| Strip range cross-section |
0.08 - 6 |
| Strip range diameter |
0.3 - 6 |
| Stripping length, max. |
20mm |
| Stripping range AWG, max. |
10 AWG |
| Stripping range AWG, min. |
28 AWG |
| Suitable For |
PVC-coated cables |
| VDE Tested |
false |
| Version |
Stripping and cutting tool |
| Weight |
181g |
| Width |
200mm |
| Width (inches) |
7.874 inch |
| With wire cutter |
true |
| Working area (cross section) |
0.08 up to 6mm² |
| Working area cross section (min.) |
0.08mm² |
