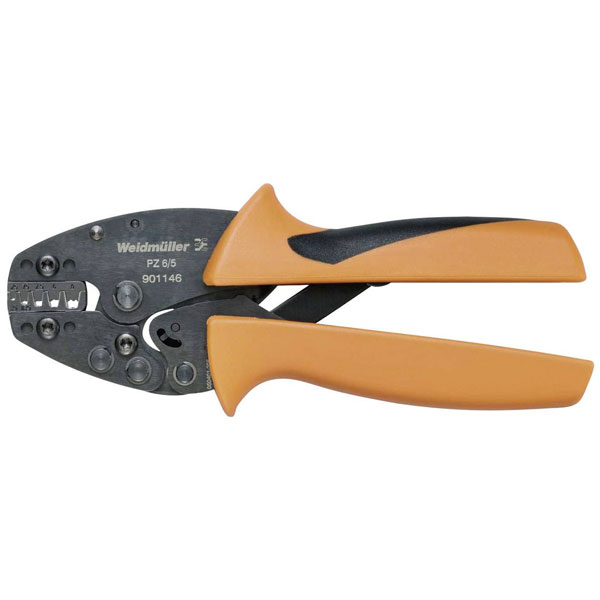

Weidmüller 9011460000 Crimper trapezindent for ferrules 0.25-6mm²

The Weidmüller PZ 6/5 crimper is designed for crimping ferrules with a size range of 0.25 to 6 mm². This crimping tool offers durable construction, ensuring reliable connections. It is typically used in electrical installations for securing wire connections.

Type	Crimper
For Use With	Ferrules
Length	200mm
Compression shape	Trapezoid compression
Conductor cross-section, max. AWG	AWG 10
Conductor cross-section, min. AWG	AWG 24
Construction/operation	Mechanical
Contains Lead	No
Crimp area	0.25 up to 6mm²
Crimp area (max.)	6mm²
Crimp area (min.)	0.25mm²
Crimp area AWG	10 up to 24 awg
Crimp area AWG (max.)	10AWG
Crimp area AWG (min.)	24AWG
Crimping profile 5	6mm²
Crimping range, max.	6mm²
Crimping range, min.	0.25mm²
Crimping type/profile	Trapezoidal indentation
Cross Section	0.25 - 6
Description of article	Crimping tool for wire
ECLASS 14.0	21-04-38-11
ECLASS 15.0	21-04-38-11
end ferrules with/without	interchangeable inserts
ETIM 10.0	EC000168
ETIM 8.0	EC000168
ETIM 9.0	EC000168
GTIN (EAN)	4008190165352
Height	226mm
Inserts exchangeable	true
Mount	Wire
Net weight	433g
Number of included inserts	0
Radiation Hardening	No
REACH SVHC	Lead 7439-92-1
Reach SVHC Compliant	No
RoHS Compliance Status	Not affected
RoHS Compliant	Yes
SCIP	2159813b-98fd-4068-b62a-bc89a046c012
Suitable For	Cable end sleeves
Type of contact	Wire-end ferrules with/
Weight	459g
Width	200mm
Width (inches)	7.874 inch
Wire end ferrules cross-section, max.	6mm²
Wire end ferrules cross-section, min.	0.25mm²
Wire Gauge (Max)	24AWG
Wire Gauge (Min)	10AWG
With automatic return	true
With locking device (for mechanical tools)	true
