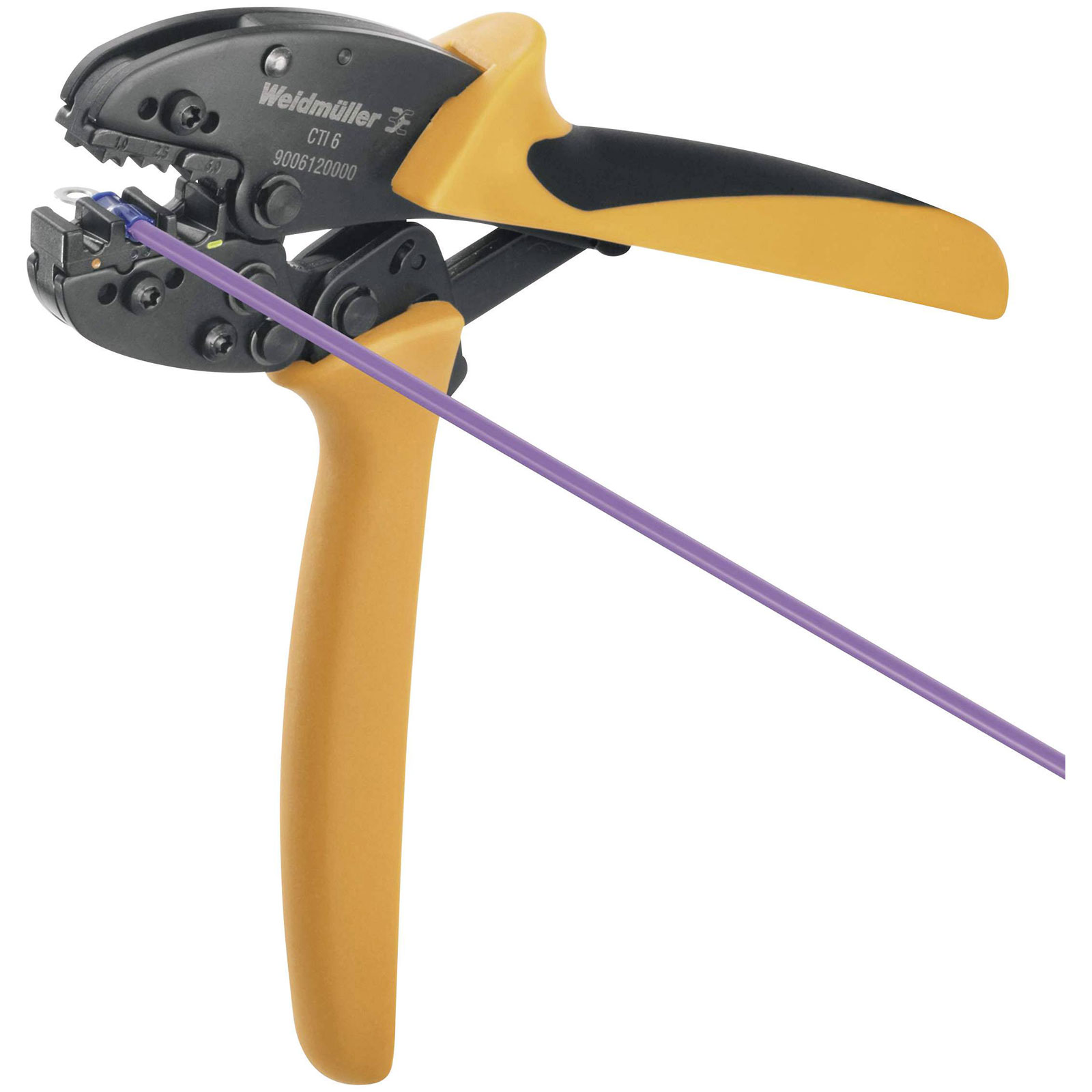

Weidmüller 9006120000 crimper for insulated Connectors 0.5-6mm²

The Weidmüller CTI 6 9006120000 crimper is designed for insulated connectors ranging from 0.5 to 6 mm². This crimping tool is ideal for secure and precise electrical connections in various industrial and professional settings. Typical applications include electrical installations and maintenance work where reliable connector fastening is essential.

Type	Crimper
For Use With	Insulated connectors
Length	250mm
Compression shape	Oval pressing
Conductor cross-section, max. AWG	AWG 10
Conductor cross-section, min. AWG	AWG 21
connectors, 0.5-6 mm²	interchangeable inserts
Construction/operation	Mechanical
Contains Lead	No
Crimp area	0.5 up to 6mm²
Crimp area (max.)	6mm²
Crimp area (min.)	0.5mm²
Crimp area AWG	10 up to 21 awg
Crimp area AWG (max.)	10AWG
Crimp area AWG (min.)	21AWG
Crimping range, max.	6mm²
Crimping range, min.	0.5mm²
Crimping station	Crimping station number
Crimping type/profile	Oval crimping, Double crimp
Cross Section	0.5 - 6
Description of article	Crimping tool for insulated
ECLASS 14	21-04-38-11
ECLASS 15.0	21-04-38-11
ETIM 10	EC000168
ETIM 8.0	EC000168
ETIM 9.0	EC000168
GTIN (EAN)	4008190044527
Height	274mm
Inserts exchangeable	false
Mount	Through Hole
Net weight	690.27g
Number of included inserts	0
Package Quantity	1
Product information	Not suitable for solid conductors. Insulation on the contact is pressed conically.
Radiation Hardening	No
REACH SVHC	Lead 7439-92-1
Reach SVHC Compliant	No
RoHS Compliance Status	Not affected
RoHS Compliant	No
SCIP	2159813b-98fd-4068-b62a-bc89a046c012
Suitable For	Cable lugs and connectors
Type of contact	Insulated connector
Weight	595.3g
Width	250mm
Width (inches)	9.8425 inch
Wire end ferrules cross-section, max.	6mm²
Wire end ferrules cross-section, min.	0.5mm²
Wire Gauge (Max)	20AWG
Wire Gauge (Min)	10AWG
With automatic return	true
With locking device (for mechanical tools)	true
