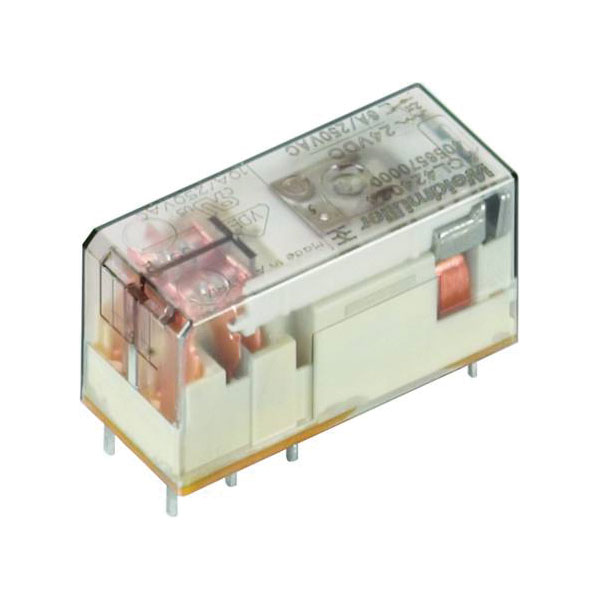

Weidmuller 8870350000-1 RCI484R24 Plug-in Relay 24VAC 8A 2 Change-overs

Weidmuller 8870350000-1 RCI484R24 Plug-in Relay 24VAC 8A 2 Change-overs

Weidmuller
Order Code:

13-5065

Brand: Weidmuller MPN: 8870350000-1 EAN-13: 2050001360519

Discontinued


Weidmüller manufactures the RCI484R24 plug-in relay, designed for 24 V AC and capable of handling 8 A with its two change-over contacts. It is suitable for mounting on a printed circuit board, making it ideal for various electronic applications. The relay is commonly used in control systems and automation tasks where reliable switching is required.
Coil Voltage 24V AC
Contact Configuration 2CO (DPDT)
Switching Current 8A
Coil Resistance 350Ω
Colour Transparent
Compatible with (details) RCIKIT
Connection Connector
Contact Material AgNi 90/10
Control Mode monostable, 1 coil
Creepage distance (coil/clips) 8mm
Depth 26.7mm
Dimensions (W x H x D) 13 x 29 x 26.7 mm
Durability 5 x 106 circuits
Fall Time 6ms
Height 29mm
Industrial packaging Yes
Max. temperature +70°C
Min. pick-up Voltage 18V AC
Minimum Temperature -40°C
Misc Attribute RCI484R24
Mounting Type Plug-in
Switching Voltage Max 400V AC
Type Plug-in relay
Width 13mm
