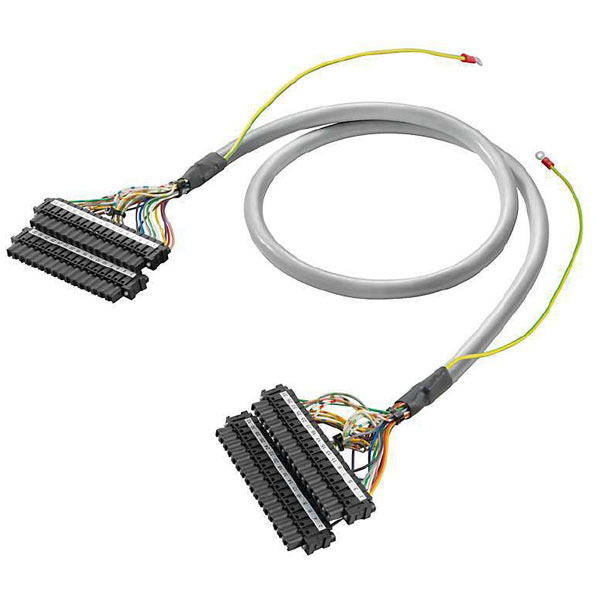

Weidműller 7789880050 Cable Digital Signals High-Quality Performance

Weidmüllers 7789880050 cable is designed for high-quality digital signal transmission with excellent performance. Engineered for reliability, it is commonly utilised in industrial automation and control systems. Suitable for environments requiring robust and efficient signal integrity, it ensures optimal performance even under demanding conditions.

Colour	Grey
Type	Cable
Basic material	PVC
Cable	Cable LiYCY
Cable Length	5 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	2 x BLC 5.08/16/180BR
Delivery status	Discontinued
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
GTIN (EAN)	4032248132003
High voltage test	1 KV/1s
Interface connector	2 x BLC 5.08/16/180BR
Net weight	983g
Number of poles, min.	32-pole
Operating Temperature	-10...50
Operating Voltage	= 250 V DC = 250 V AC
Outer Diameter	11,85 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 250 Vdc = 250 Vac
REACH SVHC	No SVHC above 0.1 wt%
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant
Storage temperature	-10...60°C
Suitable For	Digital signals
Total current, max.	3 A
Version	Pre-assembled cable, PAC, Cable LiYCY, 0.25mm²
Wire cross-section	0.25mm²
