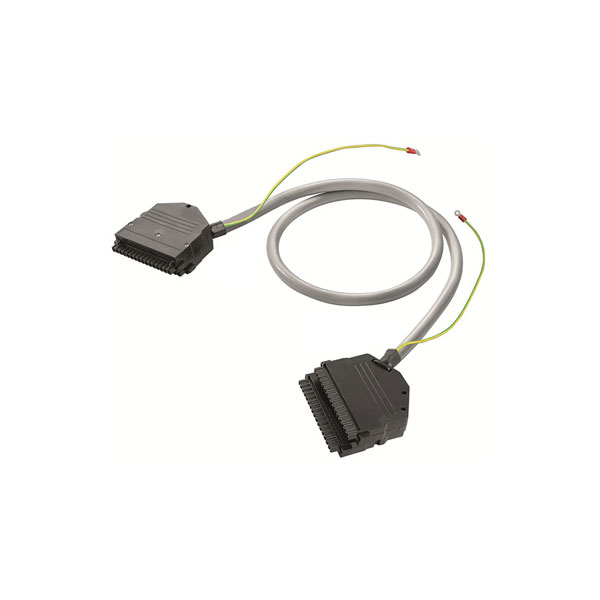

Weidműller 7789828500 Cable Digital Signals High-Performance Quality

Weidmüller produces the 7789828500 cable, known for delivering high-performance quality in transmitting digital signals. Its robust design ensures reliable connectivity, essential in high-demand industrial environments. Typical applications include automation systems and data networking in complex machinery.

Colour	Grey
Length	50
Type	Cable
Basic material	PVC
Cable	Cable LiYCY
Cable Length	50 m
Capacity wire / shield	300 pF/m
Capacity wire / wires	300 pF/m
Connector PLC side	SP-BLZP 5.08 32P with
ECLASS 14	27-24-22-20
ECLASS 15.0	27-24-22-20
ETIM 10	EC000237
ETIM 8.0	EC000237
ETIM 9.0	EC000237
Function	PLC - other devices
GTIN (EAN)	4032248234592
High voltage test	1 KV/1s
Interface connector	SP-BLZP 5.08 32P with
Net weight	16060.56g
Number of Poles	32
Number of poles, min.	32-pole
Operating Temperature	-10...50°C
Operating Voltage	= 250 V DC = 250 V AC
Outer Diameter	11,85 ± 1mm
Permissible current strength per path,	1 A
Qty.	1 items
Rated voltage	= 250 Vdc = 250 Vac
REACH SVHC	No SVHC above 0.1 wt%
Resistance	= 80 mO/m
ROHS	Conform
RoHS Compliance Status	Compliant
Storage temperature	-10...60°C
Suitable For	Digital signals
Suitable for analogue signals	false
Suitable for digital signals	true
Suitable for input board PLC	false
Suitable for output card PLC	false
Total current, max.	3 A
Version	Pre-assembled cable, PAC, Cable LiYCY, 0.25mm²
Wire cross-section	0.25mm²
