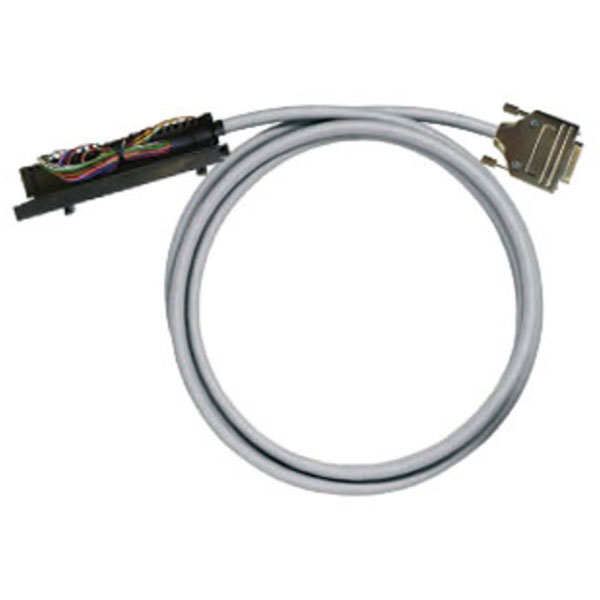

Weidmüllers cable is designed for analogue signal transmission with flexibility and durability in harsh environments. It is suitable for applications in industrial automation, control systems, and instrumentation. The robust construction ensures reliable performance and longevity.
| Colour |
Grey |
| Length |
5 |
| Type |
Cable |
| Amplifier Type |
GENERAL PURPOSE |
| Basic material |
PVC |
| Cable |
Cable LiYCY |
| Cable Length |
5 m |
| Capacity wire / shield |
300 pF/m |
| Capacity wire / wires |
300 pF/m |
| Connector PLC side |
SIEMENS S7300 |
| ECLASS 14 |
27-24-22-20 |
| ECLASS 15.0 |
27-24-22-20 |
| ETIM 10 |
EC000237 |
| ETIM 8.0 |
EC000237 |
| ETIM 9.0 |
EC000237 |
| Function |
PLC - other devices |
| Gain Bandwidth Product |
1MHz |
| GTIN (EAN) |
8430243965262 |
| High voltage test |
1 KV/1s |
| Input bias current |
1pA |
| Input Offset Voltage (Vos) |
500uV |
| Interface connector |
SUB-D FEMALE 15P |
| Material |
PVC |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-40°C |
| Mount |
Surface Mount |
| Net weight |
744g |
| Number of Circuits |
1 |
| Number of Poles |
15 |
| Number of poles, min. |
15-pole |
| Operating Supply Current |
160uA |
| Operating Temperature |
-10...50 |
| Outer Diameter |
8.7 ± 1mm |
| Output Current per Channel |
10mA |
| Package Quantity |
3000 |
| Package/Case |
SOT-23-5 |
| Packaging |
Tape and Reel |
| Permissible current strength per path, |
1 A |
| Qty. |
1 items |
| Rated voltage |
= 60 Vdc = 25 Vac |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance |
80mR |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| SCIP |
4bbf2c0d-0764-4fc8-bb24-9351c28c190d |
| Slew rate |
0.6V/µs |
| Storage temperature |
-10...60°C |
| Suitable For |
Analogue signals |
| Suitable for analogue signals |
true |
| Suitable for digital signals |
false |
| Suitable for input board PLC |
false |
| Suitable for output card PLC |
false |
| Total current, max. |
3 A |
| Type of electrical connection, box-sided |
Connection plug board |
| Type of electrical connection, field-sided |
Other |
| Version |
Pre-assembled cable, PAC, Cable LiYCY, 0.25mm² |
| Wire cross-section |
0.25mm² |
