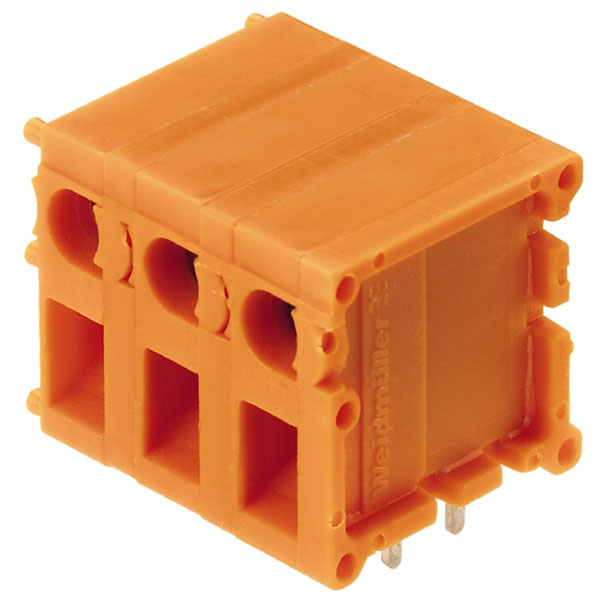

Weidműller 642460000 PCB Terminal 7.62mm Female Unshrouded

Weidmüller manufactures the 642460000 PCB terminal, featuring a 7.62mm pin pitch and female unshrouded design. This terminal is notable for its robust connectivity and easy integration onto printed circuit boards. Typical applications include industrial automation systems and power distribution networks.

Pitch	7.62mm
Mounting Type	Through Hole
Mounting Direction	Horizontal
Wire Gauge (AWG)	26 - 14 AWG
Wire Termination	Screwless
(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
Approvals	CSA
Available until	2023-03-31T00:00:00+02:00
Certificate No. (CSA)	154685-1501716
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	2.5mm²
Clamping range, min.	0.13mm²
Clamping screw	M 2.5
class/ pollution degree II/2	class/ pollution degree III/2
Colour	Orange
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	= 600
Conductor outlet direction	90°
Contact Material	CuZn
Contact surface	tinned
Cross-section for conductor connection	Type
Current Rating	10A
Delivery status	Discontinued
Depth	19.5
Depth (inches)	0.7677 inch
ECLASS 14.0	27-46-01-01
ECLASS 15.0	27-46-01-01
ETIM 10.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
Fitted by customer	No
Flammability Rating	UL94 V-2
Flexible, max. H05(07) V-K	2.5mm²
Flexible, min. H05(07) V-K	0.5mm²
GTIN (EAN)	4008190134242
GTIN (EAN) 4008190061692	Number of poles: 1
Height	22mm
Height (inches)	0.8661 inch
Height of lowest version	18.5mm
Housing Colour	Orange
Institute (CSA)	CSA
Insulating material	PA
Insulating material group	I
Insulation Material	Nylon
Insulation Resistance	= 108 O
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	2.100 "
L1 in mm	53.34mm
Layer structure of solder connection	1.5...3 µm Ni / 4...6 µm Sn
Moisture Level (MSL)	UL 94 flammability rating
Mount	Through Hole
Mounting onto the PCB	THT solder connection
Net weight	32.5g
Notes	•Additional variants on request
Number of Circuits	8
Number of Contacts	8
Number of Poles	8
Number of Rows	1
Number of solder pins per pole	2
Operating temperature, max.	100
Operating temperature, min.	-50°C
Order No.	1539860000
Orientation	Right Angle
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.300 "
Pitch in mm (P)	7.62mm
Plug gauge in accordance with EN	2.4 mm x 1.5 mm
pollution degree III/2	pollution degree III/3
Product data	IEC: 1000 V / 24 A / 0.5 - 2.5mm²
Product family	OMNIMATE Signal - series
Protection degree	IP20
Radiation Hardening	No
Rated current (Use group B / CSA)	10 A
Rated current (Use group B / UL 1059) 10 A	Rated current (Use group D / UL 1059) 10 A
Rated current (Use group D / CSA)	10 A
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated voltage (Use group D / UL 1059) 300 V
Rated voltage (Use group D / CSA)	300 V
REACH SVHC	No SVHC above 0.1 wt%
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage., The outside
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
RoHS Compliant	Yes
Screwdriver blade	0.6 x 3.5
Screwdriver blade standard	DIN 5264
Solder eyelet hole diameter (D)	1.3mm
Solder pin dimensions	0.8 x 1.0 mm
Solder pin length (l)	3.5mm
Solid, max. H05(07) V-U	2.5mm²
Solid, min. H05(07) V-U	0.5mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Temperature range, installation, max.	100°C
Temperature range, installation, min.	-25°C
Termination	Solder
tested acc. to standard	IEC 60664-1, IEC 61984
Tightening torque, max.	0.5 Nm
Tightening torque, min.	0.4 Nm
Type	PCB terminal
Version	Printed circuit board terminals, 7.62 mm, Num-
Voltage Rating	300V
Volume resistance	1.20 mO
VPE height	55.00mm
VPE length	161.00mm
VPE width	108.00mm
Width	62.76mm
Width (inches)	2.4709 inch
Wire connection method	TOP connection
Wire cross-section, AWG, max.	AWG 14
Wire cross-section, AWG, min.	AWG 26
wire end ferrule	Stripping length
