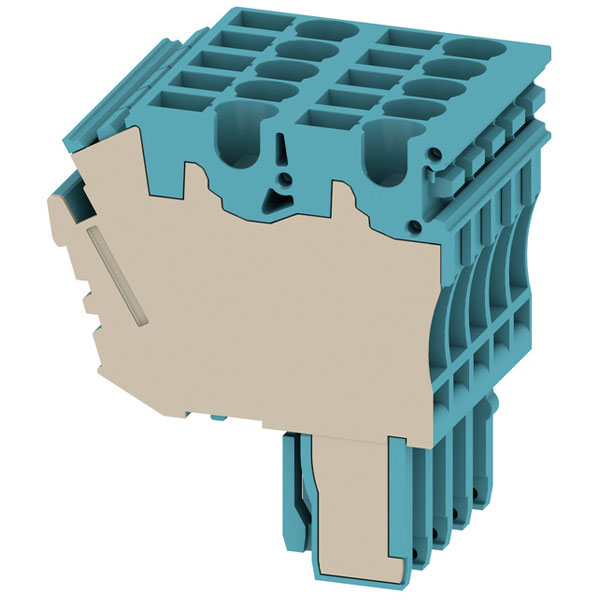

Weidmüller presents the 2702470000 plug connector, a male unshrouded component with a compact 2.5mm pitch. Primarily used in industrial and electronic applications, this connector ensures reliable electrical connections in compact spaces. Enhanced for durability, it is ideal for environments requiring consistent performance in high-density configurations.
| Body Style |
Plug, horizontal mount |
| Pitch |
2.5mm |
| No. of Rows |
2 |
| Colour |
Blue |
| 46228/1, max. |
46228/1, min. |
| 46228/4, max. |
46228/4, min. |
| 60947-7-1 |
60947-7-x |
| Accessory |
true |
| Ambient temperature |
-50 °C…75°C |
| Basic material |
Wemid |
| Blade size |
0.6 x 3.5 mm |
| Clamping range, max. |
4mm² |
| Clamping range, min. |
0.13mm² |
| Connection cross-section, stranded, min.0.13 mm² |
Wire connection cross-section, solid |
| Connection direction |
top |
| Continuous operating temp., max. |
120°C |
| Continuous operating temp., min. |
-50°C |
| Current at maximum wires |
24 A |
| Depth |
41mm |
| Depth (inches) |
1.6142 inch |
| ECLASS 14 |
27-25-03-90 |
| ECLASS 15.0 |
27-25-03-90 |
| End cover plate required |
No |
| ETIM 10 |
EC002848 |
| ETIM 8.0 |
EC002848 |
| ETIM 9.0 |
EC002848 |
| Gauge to IEC 60947-1 |
A2 |
| GTIN (EAN) |
4050118711424 |
| Height |
37mm |
| Height (inches) |
1.4567 inch |
| Installation advice |
Direct mounting |
| Levels cross-connected internally |
No |
| Net weight |
27.4g |
| Nominal Current |
24 A |
| Number of clamping points per level |
2 |
| Number of connections |
10 |
| Number of levels |
1 |
| Number of Poles |
5 |
| Number of potentials |
5 |
| Open sides |
closed |
| PE connection |
No |
| Pollution severity |
3 |
| Power loss in accordance with IEC |
0.77 W |
| Qty. |
20 items |
| Rated cross-section |
2.5mm² |
| Rated DC voltage |
500 V |
| Rated impulse withstand voltage |
6 kV |
| Rated impulse withstand voltage to |
6 kV |
| Rated voltage |
500 V |
| Rated voltage to adjoining terminal |
500 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Spare part |
false |
| Standards |
In accordance with IEC |
| Storage temperature |
-25 °C...55°C |
| stranded, max. |
stranded, min. |
| Stripping length |
10mm |
| Type |
ZP 2.5/2AN/QV/5 BL |
| Type of accessory/spare part |
Other |
| Type of connection |
Plug-in connection |
| Type of mounting |
Plugged |
| UL 94 flammability rating |
V-0 |
| Volume resistance according to IEC |
1.33 mO |
| Width |
25mm |
| Width (inches) |
0.9842 inch |
| Wire connection cross-section, solid |
0.13mm² |
