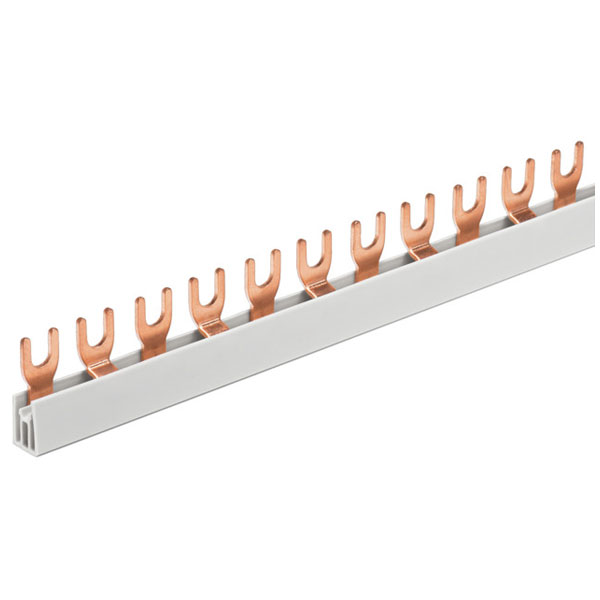

Weidműller 2658200000 Cross-Connector Male Unshrouded Conductive

Weidmüllers 2658200000 Cross-Connector is a male unshrouded conductive component. It is designed for secure electrical connections between terminal blocks, offering reliability in high-density wiring applications. Ideal for use in industrial and automation systems, it simplifies circuit configurations.

Accessory Type	Phase Busbar Terminals
Used With	Any
Ambient temperature	-5 °C…40°C
Available until	2025-06-01T00:00:00+02:00
Colour	grey
Delivery status	Discontinued
Depth	9.3mm
Depth (inches)	0.3661 inch
Explosion-tested version	No
GTIN (EAN)	4050118672329
Height	28.5mm
Height (inches)	1.122 inch
Net weight	86.96g
Nominal Current	80 A
Number of Poles	38
Pitch in mm (P)	27.00mm
Rated cross-section	16mm²
Rated voltage	400 V
REACH SVHC	No SVHC above 0.1 wt%
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Version	Phase busbar (Terminals), 80, Number of poles:
Width	1016mm
Width (inches)	39.9999 inch
