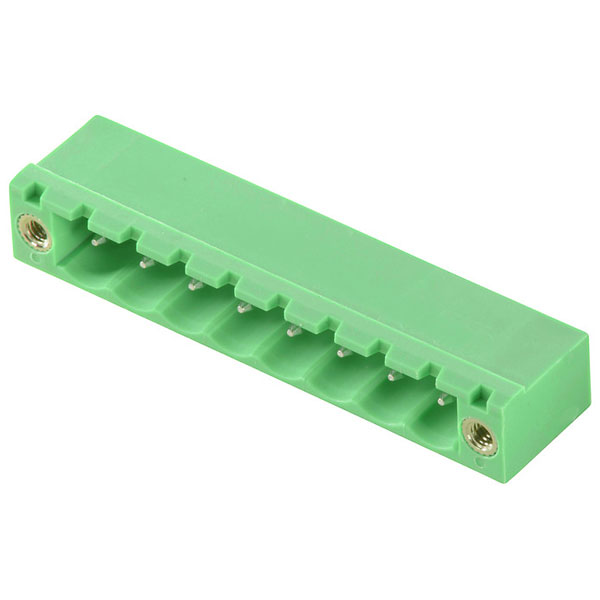

Weidműller 2645190000 Connector 5.00mm Female Shrouded Durable Design

Weidmüllers 2645190000 is a 5.00mm female shrouded connector known for its durable design. It is ideal for reliable and secure electrical connections in industrial and automation applications. This part ensures optimal performance, even in demanding environments.

Pitch	5mm
No. of Rows	1
Colour	Green
Wire Gauge (AWG)	N/A
(Tu=20°C)	pollution degree II/2
Certificate No. (cURus)	E60693
class/ pollution degree II/2	class/ pollution degree III/2
Colour chart (similar)	RAL 6021
Contact Base Material	Cu-alloy
Contact Material	Cu-alloy
Contact surface	tinned
GTIN (EAN)	4050118641783
Institute (cURus)	CURUS
Insulating material	PA GF
Insulating material group	I
L1 in inches	0.394 "
L1 in mm	10.00mm
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Moisture Level (MSL)	UL 94 flammability rating
Mounting onto the PCB	THT solder connection
Net weight	1.88g
Notes	•Only compatible with OMNIMATE basic products
Number of Poles	3
Number of Rows	1
Number of solder pins per pole	1
Outgoing elbow	90°
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.197 "
Pitch in mm (P)	5.00mm
pollution degree III/2	pollution degree III/3
Product data	IEC: 630 V / 15 A
Product family	OMNIMATE Signal - series
Qty.	300 items
Rated current (Use group B / CSA)	15 A
Rated current (Use group B / UL 1059) 15 A	Rated current (Use group D / UL 1059) 10 A
Rated current (Use group D / CSA)	10 A
Rated current, min. number of poles	15 A
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated voltage (Use group D / UL 1059) 300 V
Rated voltage (Use group D / CSA)	300 V
REACH SVHC	Lead 7439-92-1
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	2f5e7231-4ad1-4dcb-8e0f-b14defbd9d78
Solder eyelet hole diameter (D)	1.6mm
Solder pin dimensions	1.0 x 1.0 mm
Solder pin length (l)	3.9mm
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Tinning type	matt
Type	CH 5.00/03/90F 3.9SN GN BX
Type of connection	Board connection
UL File Number Search	UL Website
VPE height	50.00mm
VPE length	169.00mm
VPE width	136.00mm
