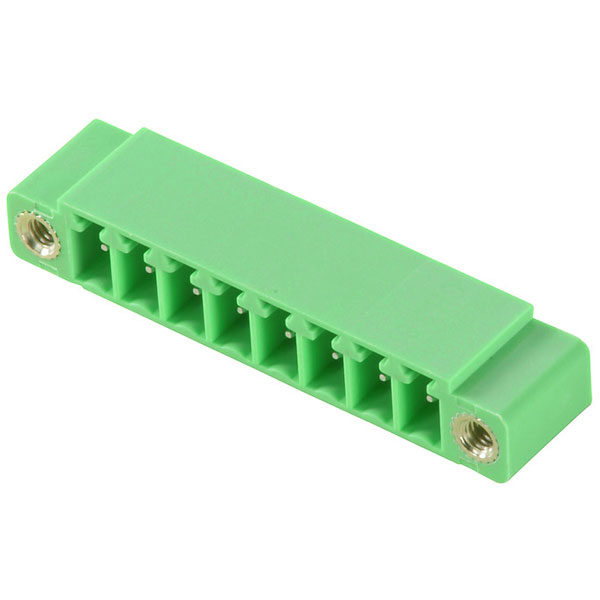

Weidműller 2643080000 Connector Female Shrouded 3.81mm

Weidmüller produces the 2643080000 connector featuring a female shrouded design with a 3.81mm pitch. This connector is ideal for secure wire-to-board connections in compact electronic applications. Common applications include industrial automation systems and control panel wiring.

Pitch	3.81mm
No. of Rows	1
Colour	Green
Wire Gauge (AWG)	N/A
(Tu=20°C)	pollution degree II/2
Certificate No. (cURus)	E60693
class/ pollution degree II/2	class/ pollution degree III/2
Colour chart (similar)	RAL 6021
Contact Base Material	Cu-alloy
Contact Material	Cu-alloy
Contact surface	tinned
ECLASS 14	27-46-02-01
ECLASS 15.0	27-46-02-01
ETIM 10	EC002637
ETIM 8.0	EC002637
ETIM 9.0	EC002637
GTIN (EAN)	4050118643893
Institute (cURus)	CURUS
Insulating material	PA GF
Insulating material group	I
L1 in inches	0.750 "
L1 in mm	19.05mm
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Moisture Level (MSL)	UL 94 flammability rating
Mounting onto the PCB	THT solder connection
Net weight	2.36g
Notes	•Only compatible with OMNIMATE basic products
Number of Poles	6
Number of Rows	1
Number of solder pins per pole	1
Outgoing elbow	90°
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.150 "
Pitch in mm (P)	3.81mm
pollution degree III/2	pollution degree III/3
Product data	IEC: 320 V / 8 A
Product family	OMNIMATE Signal - series
Qty.	312 items
Rated current (Use group B / CSA)	8 A
Rated current, min. number of poles	8 A
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated current (Use group B / UL 1059) 8 A
REACH SVHC	Lead 7439-92-1
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	2f5e7231-4ad1-4dcb-8e0f-b14defbd9d78
Solder eyelet hole diameter (D)	1.3mm
Solder pin dimensions	0.8 x 0.8 mm
Solder pin length (l)	3.5mm
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Tinning type	matt
Type	CH 3.81/06/90F 3.5SN GN BX
Type of connection	Board connection
UL File Number Search	UL Website
VPE height	51.00mm
VPE length	169.00mm
VPE width	134.00mm
