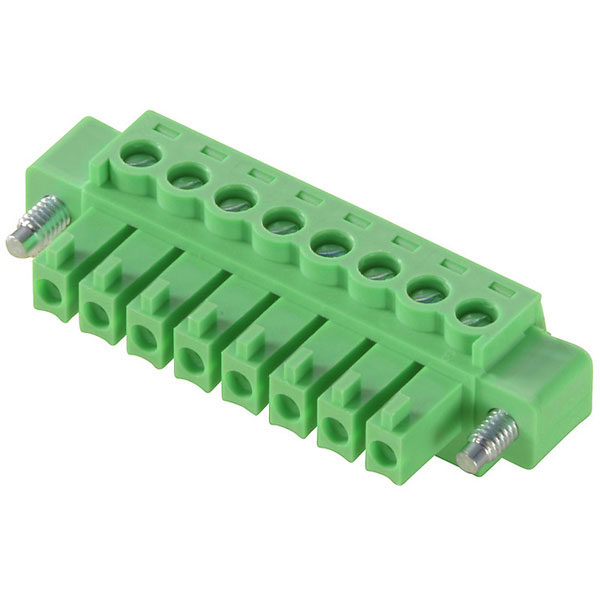

Weidmüllers 2642700000 connector is a 3.81mm pitch female unshrouded component, ideal for streamlined electrical applications. This connector offers secure and efficient connectivity, typically used in electronic panel and machinery installations. Known for its reliability, its a choice component across various industrial settings.
| Pitch |
3.81mm |
| No. of Rows |
1 |
| Colour |
Green |
| (Tu=20°C) |
pollution degree II/2 |
| Angle contact/conductor connection |
90° (upwards vertical) |
| Certificate No. (cURus) |
E60693 |
| Clamping range, max. |
1.5mm² |
| Clamping range, min. |
0.2mm² |
| Clamping screw |
M 2 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Coating housing |
Uncoated |
| Colour chart (similar) |
RAL 6021 |
| Conductor outlet direction |
180° |
| Connectable cable type |
Tubular cable |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.2 - 0.75 |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 1 |
| Connectable conductor cross section multi-wired |
0.05 - 1.5 |
| Connectable conductor cross section solid-core |
0.2 - 1.5 |
| Contact Base Material |
Copper alloy |
| Contact Material |
Copper alloy |
| Contact surface |
tinned |
| Contact Type |
Bus |
| ECLASS 14 |
27-46-02-02 |
| ECLASS 15.0 |
27-46-02-02 |
| ETIM 10 |
EC002638 |
| ETIM 8.0 |
EC002638 |
| ETIM 9.0 |
EC002638 |
| Flexible, max. H05(07) V-K |
1mm² |
| Flexible, min. H05(07) V-K |
0.2mm² |
| GTIN (EAN) |
4050118644272 |
| Housing Colour |
Green |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
V0 |
| Institute (cURus) |
CURUS |
| Insulating material |
PA |
| Insulating material group |
I |
| L1 in inches |
0.750 " |
| L1 in mm |
19.05mm |
| Material contact |
Other copper alloys |
| Material insulation body |
Polyamide (PA) |
| Material of contact surface |
Tin |
| Maximum Operating Temperature |
105°C |
| min. |
max. |
| Minimum Operating Temperature |
-40°C |
| Modular spacing connections |
3.81 |
| Modular spacing contacts |
3.81 |
| Moisture Level (MSL) |
UL 94 flammability rating |
| Net weight |
4.33g |
| Notes |
•Only compatible with OMNIMATE basic products |
| Number of Poles |
6 |
| Number of Rows |
1 |
| Operating Temperature |
-40 - 105 |
| Overvoltage category |
III |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.150 " |
| Pitch in mm (P) |
3.81mm |
| Plugging cycles |
25 |
| Plugging force/pole, max. |
12 N |
| Pollution degree |
2 |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 320 V / 8 A / 0.2 - 1.5mm² |
| Product family |
OMNIMATE basic – Series |
| Pulling force/pole, max. |
12 N |
| Qty. |
138 items |
| Rated current (Use group B / CSA) |
8 A |
| Rated current, min. number of poles |
8 A |
| Rated Surge Voltage |
2.5 |
| Rated voltage |
160 |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated current (Use group B / UL 1059) 8 A |
| REACH SVHC |
Lead 7439-92-1 |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
d5655e4a-7bb0-47c8-bd67-25d5021f9ded |
| Screwdriver blade |
0.4 x 2.5 |
| Solid, max. H05(07) V-U |
1.5mm² |
| Solid, min. H05(07) V-U |
0.2mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Stranded, max. H07V-R |
1.5mm² |
| Stranded, min. H07V-R |
0.05mm² |
| Stripping length |
6.5mm |
| Tightening torque, max. |
0.25 Nm |
| Tightening torque, min. |
0.22 Nm |
| Tinning type |
matt |
| Type |
CPS 3.81/06/180F SN GN BX |
| Type of connection |
Flexible PCB-connector |
| Type of electric connection |
Screw connection |
| UL File Number Search |
UL Website |
| VPE height |
52.00mm |
| VPE length |
171.00mm |
| VPE width |
134.00mm |
| w. plastic collar ferrule, DIN 46228 pt 4,0.2 mm² |
w. plastic collar ferrule, DIN 46228 pt 4,0.75mm² |
| Wire connection method |
Clamping yoke connection |
| Wire cross-section, AWG, max. |
AWG 16 |
| Wire cross-section, AWG, min. |
AWG 30 |
