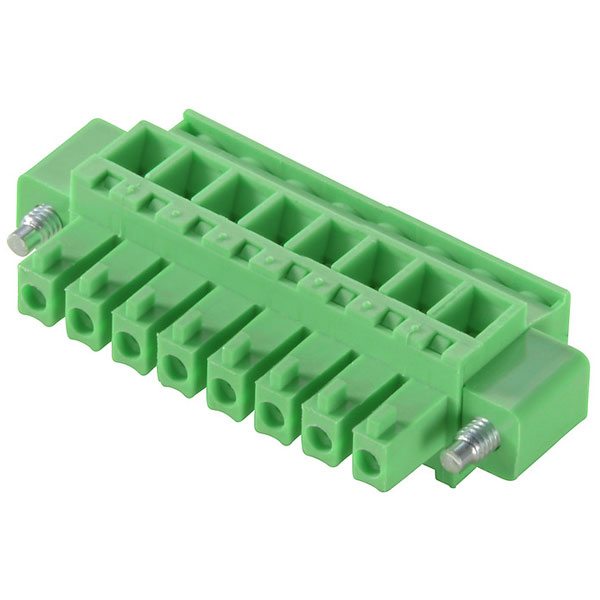

Weidmüllers 2642490000 connector is a female, unshrouded component with a 3.81mm pitch, designed for secure and reliable electrical connections. The connector is suitable for use in various industrial and commercial applications, ensuring efficient power transmission and signal integrity. Typical applications include control cabinets and automation systems where compact and reliable connections are essential.
| Pitch |
3.81mm |
| No. of Rows |
1 |
| Colour |
Green |
| (Tu=20°C) |
pollution degree II/2 |
| Angle contact/conductor connection |
180° (horizontal) |
| Certificate No. (cURus) |
E60693 |
| Clamping range, max. |
1.5mm² |
| Clamping range, min. |
0.2mm² |
| Clamping screw |
M 2 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Coating housing |
Uncoated |
| Colour chart (similar) |
RAL 6021 |
| Conductor outlet direction |
90° |
| Connectable cable type |
Tubular cable |
| Connectable conductor cross section fine-strand with cable end sleeve |
0.2 - 0.75 |
| Connectable conductor cross section fine-strand without cable end sleeve |
0.2 - 1 |
| Connectable conductor cross section multi-wired |
0.05 - 1.5 |
| Connectable conductor cross section solid-core |
0.2 - 1.5 |
| Contact Base Material |
Copper alloy |
| Contact Material |
Copper alloy |
| Contact surface |
tinned |
| Contact Type |
Bus |
| ECLASS 14 |
27-46-02-02 |
| ECLASS 15.0 |
27-46-02-02 |
| ETIM 10 |
EC002638 |
| ETIM 8.0 |
EC002638 |
| ETIM 9.0 |
EC002638 |
| Flexible, max. H05(07) V-K |
1mm² |
| Flexible, min. H05(07) V-K |
0.2mm² |
| GTIN (EAN) |
4050118644487 |
| Housing Colour |
Green |
| Housing Material |
Plastic |
| Inflammability class of insulation material according to UL94 |
V0 |
| Institute (cURus) |
CURUS |
| Insulating material |
PA |
| Insulating material group |
I |
| L1 in inches |
0.450 " |
| L1 in mm |
11.43mm |
| Material contact |
Other copper alloys |
| Material insulation body |
Polyamide (PA) |
| Material of contact surface |
Tin |
| Maximum Operating Temperature |
105°C |
| min. |
max. |
| Minimum Operating Temperature |
-40°C |
| Modular spacing connections |
3.81 |
| Modular spacing contacts |
3.81 |
| Moisture Level (MSL) |
UL 94 flammability rating |
| Net weight |
3.96g |
| Notes |
•Only compatible with OMNIMATE basic products |
| Number of Poles |
4 |
| Number of Rows |
1 |
| Operating Temperature |
-40 - 105 |
| Overvoltage category |
III |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.150 " |
| Pitch in mm (P) |
3.81mm |
| Plugging cycles |
25 |
| Plugging force/pole, max. |
12 N |
| Pollution degree |
2 |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 320 V / 8 A / 0.2 - 1.5mm² |
| Product family |
OMNIMATE basic – Series |
| Pulling force/pole, max. |
12 N |
| Qty. |
180 items |
| Rated current (Use group B / CSA) |
8 A |
| Rated current, min. number of poles |
8 A |
| Rated Surge Voltage |
2.5 |
| Rated voltage |
160 |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated current (Use group B / UL 1059) 8 A |
| REACH SVHC |
Lead 7439-92-1 |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
d5655e4a-7bb0-47c8-bd67-25d5021f9ded |
| Screwdriver blade |
0.4 x 2.5 |
| Solid, max. H05(07) V-U |
1.5mm² |
| Solid, min. H05(07) V-U |
0.2mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Stranded, max. H07V-R |
1.5mm² |
| Stranded, min. H07V-R |
0.05mm² |
| Stripping length |
6.5mm |
| Tightening torque, max. |
0.25 Nm |
| Tightening torque, min. |
0.22 Nm |
| Tinning type |
matt |
| Type |
CPS 3.81/04/90F SN GN BX |
| Type of connection |
Flexible PCB-connector |
| Type of electric connection |
Screw connection |
| UL File Number Search |
UL Website |
| VPE height |
52.00mm |
| VPE length |
171.00mm |
| VPE width |
136.00mm |
| w. plastic collar ferrule, DIN 46228 pt 4,0.2 mm² |
w. plastic collar ferrule, DIN 46228 pt 4,0.75mm² |
| Wire connection method |
Clamping yoke connection |
| Wire cross-section, AWG, max. |
AWG 16 |
| Wire cross-section, AWG, min. |
AWG 30 |
