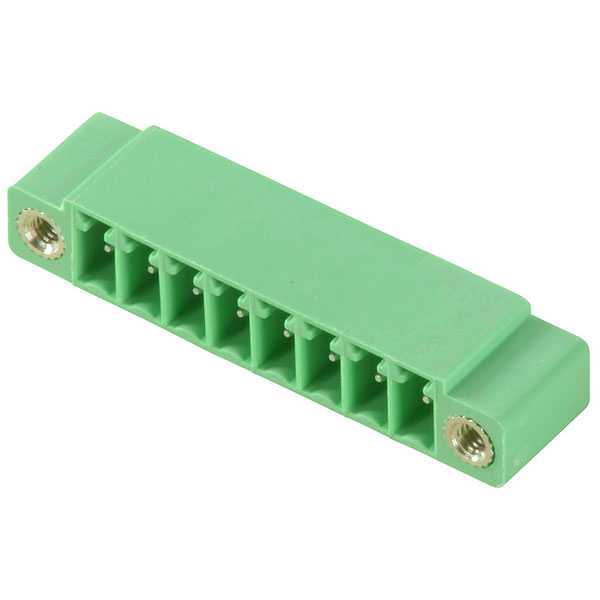

Weidműller 2641180000 Connector Female Shrouded 3.50mm

Weidmüller produces the 2641180000 connector, a female shrouded component with a 3.50mm pitch. This connector is utilised in electronic and electrical applications for secure and reliable connections. Ideal for automation and control systems, it enhances operational safety and efficiency.

Pitch	3.5mm
No. of Rows	1
Colour	Green
Wire Gauge (AWG)	N/A
(Tu=20°C)	pollution degree II/2
Angle PCB/contact	0°/180° (horizontal)
Certificate No. (cURus)	E60693
class/ pollution degree II/2	class/ pollution degree III/2
Colour chart (similar)	RAL 6021
Connector model	Fixed connector
Contact Base Material	Cu-alloy
Contact Material	Cu-alloy
Contact surface	tinned
Contact Type	Pin
ECLASS 14	27-46-02-01
ECLASS 15.0	27-46-02-01
ETIM 10	EC002637
ETIM 8.0	EC002637
ETIM 9.0	EC002637
GTIN (EAN)	4050118645798
Housing Colour	Green
Inflammability class of insulation material according to UL94	V0
Institute (cURus)	CURUS
Insulating material	PA GF
Insulating material group	I
L1 in inches	0.690 "
L1 in mm	17.50mm
Length pin	3.5
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Modular spacing connections	3.5
Modular spacing contacts	3.5
Moisture Level (MSL)	UL 94 flammability rating
Mounting onto the PCB	THT solder connection
Net weight	1.95g
Notes	•Only compatible with OMNIMATE basic products
Number of plug-in contact rows	1
Number of Poles	6
Number of Rows	1
Number of solder pins per pole	1
Operating Temperature	-40 - 105
Outgoing elbow	90°
Overvoltage category	II
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.138 "
Pitch in mm (P)	3.50mm
Pollution degree	2
pollution degree III/2	pollution degree III/3
Product data	IEC: 320 V / 8 A
Product family	OMNIMATE Signal - series
Qty.	384 items
Rated current (Use group B / CSA)	8 A
Rated current, min. number of poles	8 A
Rated Surge Voltage	2.5
Rated voltage	160
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated current (Use group B / UL 1059) 8 A
REACH SVHC	Lead 7439-92-1
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	2f5e7231-4ad1-4dcb-8e0f-b14defbd9d78
Solder eyelet hole diameter (D)	1.3mm
Solder pin dimensions	0.8 x 0.8 mm
Solder pin length (l)	3.5mm
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Tinning type	matt
Type	CH 3.50/06/90F 3.5SN GN BX
Type of banding	Other
Type of connection	Flexible PCB-connector
Type of electric connection	THR connection
Type of fastening	Solder
Type of PCB fastening	Other
UL File Number Search	UL Website
VPE height	51.00mm
VPE length	170.00mm
VPE width	134.00mm
