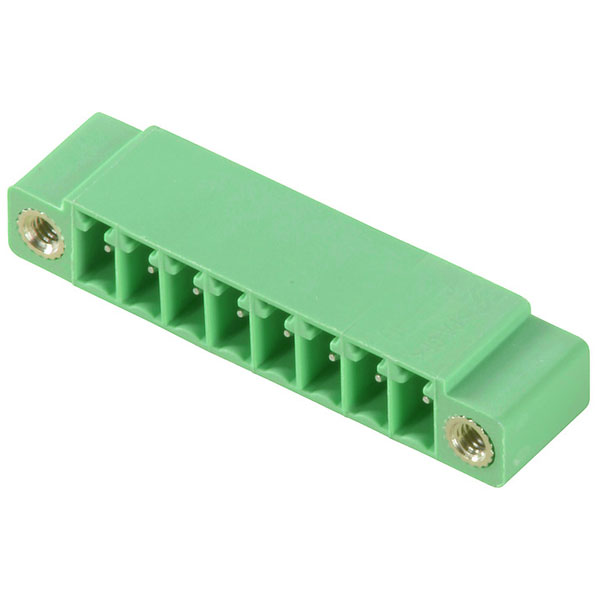

Weidmüller manufactures the 2641160000 connector, which is a 3.50mm female shrouded component, ensuring secure and reliable electrical connections. It features an ergonomic design with robust housing that provides protection and durability in industrial environments. Typically used in control panels and circuit interfaces, this connector supports efficient signal and power transmission.
| Pitch |
3.5mm |
| No. of Rows |
1 |
| Colour |
Green |
| Wire Gauge (AWG) |
N/A |
| (Tu=20°C) |
pollution degree II/2 |
| Certificate No. (cURus) |
E60693 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Colour chart (similar) |
RAL 6021 |
| Contact Base Material |
Cu-alloy |
| Contact Material |
Cu-alloy |
| Contact surface |
tinned |
| ECLASS 14 |
27-46-02-01 |
| ECLASS 15.0 |
27-46-02-01 |
| ETIM 10 |
EC002637 |
| ETIM 8.0 |
EC002637 |
| ETIM 9.0 |
EC002637 |
| GTIN (EAN) |
4050118645811 |
| Institute (cURus) |
CURUS |
| Insulating material |
PA GF |
| Insulating material group |
I |
| L1 in inches |
0.414 " |
| L1 in mm |
10.50mm |
| Maximum Operating Temperature |
105°C |
| Minimum Operating Temperature |
-40°C |
| Moisture Level (MSL) |
UL 94 flammability rating |
| Mounting onto the PCB |
THT solder connection |
| Net weight |
1.85g |
| Notes |
•Only compatible with OMNIMATE basic products |
| Number of Poles |
4 |
| Number of Rows |
1 |
| Number of solder pins per pole |
1 |
| Outgoing elbow |
90° |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.138 " |
| Pitch in mm (P) |
3.50mm |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 320 V / 8 A |
| Product family |
OMNIMATE Signal - series |
| Qty. |
480 items |
| Rated current (Use group B / CSA) |
8 A |
| Rated current, min. number of poles |
8 A |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated current (Use group B / UL 1059) 8 A |
| REACH SVHC |
Lead 7439-92-1 |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
2f5e7231-4ad1-4dcb-8e0f-b14defbd9d78 |
| Solder eyelet hole diameter (D) |
1.3mm |
| Solder pin dimensions |
0.8 x 0.8 mm |
| Solder pin length (l) |
3.5mm |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Tinning type |
matt |
| Type |
CH 3.50/04/90F 3.5SN GN BX |
| Type of connection |
Board connection |
| UL File Number Search |
UL Website |
| VPE height |
50.00mm |
| VPE length |
170.00mm |
| VPE width |
135.00mm |
