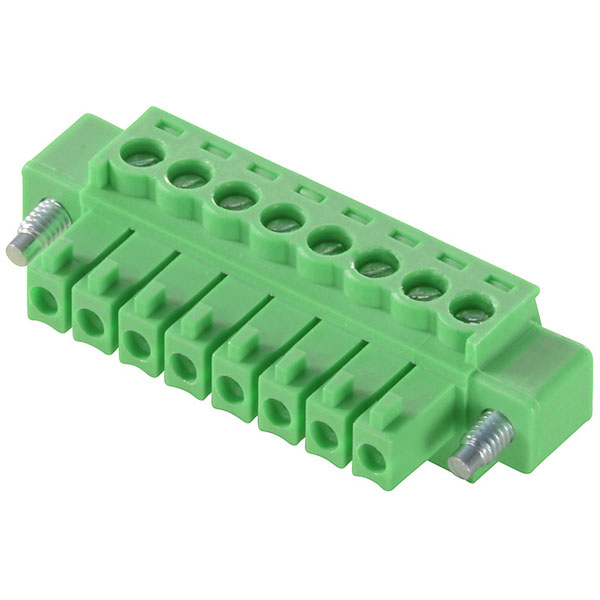

Weidműller 2640940000 Connector Female Shrouded 3.50mm

Weidmüller 2640940000 is a female shrouded connector with a 3.50mm pitch. It features secure connections for printed circuit boards, ensuring reliable electrical contact and signal integrity. Typical applications include electronic assemblies and control panels in industrial environments.

Pitch	3.5mm
No. of Rows	1
Colour	Green
(Tu=20°C)	pollution degree II/2
Angle contact/conductor connection	90° (upwards vertical)
Certificate No. (cURus)	E60693
Clamping range, max.	1.5mm²
Clamping range, min.	0.2mm²
Clamping screw	M 2
class/ pollution degree II/2	class/ pollution degree III/2
Coating housing	Uncoated
Colour chart (similar)	RAL 6021
Conductor outlet direction	180°
Connectable cable type	Tubular cable
Connectable conductor cross section fine-strand with cable end sleeve	0.2 - 0.75
Connectable conductor cross section fine-strand without cable end sleeve	0.2 - 1
Connectable conductor cross section multi-wired	0.05 - 1.5
Connectable conductor cross section solid-core	0.2 - 1.5
Contact Base Material	Copper alloy
Contact Material	Copper alloy
Contact surface	tinned
Contact Type	Bus
ECLASS 14	27-46-02-02
ECLASS 15.0	27-46-02-02
ETIM 10	EC002638
ETIM 8.0	EC002638
ETIM 9.0	EC002638
Flexible, max. H05(07) V-K	1mm²
Flexible, min. H05(07) V-K	0.2mm²
GTIN (EAN)	4050118646030
Housing Colour	Green
Housing Material	Plastic
Inflammability class of insulation material according to UL94	V0
Institute (cURus)	CURUS
Insulating material	PA
Insulating material group	I
L1 in inches	2.622 "
L1 in mm	66.50mm
Material contact	Other copper alloys
Material insulation body	Polyamide (PA)
Material of contact surface	Tin
Maximum Operating Temperature	105°C
min.	max.
Minimum Operating Temperature	-40°C
Modular spacing connections	3.5
Modular spacing contacts	3.5
Moisture Level (MSL)	UL 94 flammability rating
Net weight	14.98g
Notes	•Only compatible with OMNIMATE basic products
Number of Poles	20
Number of Rows	1
Operating Temperature	-40 - 105
Overvoltage category	III
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.138 "
Pitch in mm (P)	3.50mm
Plugging cycles	25
Plugging force/pole, max.	12 N
Pollution degree	2
pollution degree III/2	pollution degree III/3
Product data	IEC: 320 V / 8 A / 0.2 - 1.5mm²
Product family	OMNIMATE basic – Series
Pulling force/pole, max.	12 N
Qty.	60 items
Rated current (Use group B / CSA)	8 A
Rated current, min. number of poles	8 A
Rated Surge Voltage	2.5
Rated voltage	160
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated current (Use group B / UL 1059) 8 A
REACH SVHC	Lead 7439-92-1
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	d5655e4a-7bb0-47c8-bd67-25d5021f9ded
Screwdriver blade	0.4 x 2.5
Solid, max. H05(07) V-U	1.5mm²
Solid, min. H05(07) V-U	0.2mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Stranded, max. H07V-R	1.5mm²
Stranded, min. H07V-R	0.05mm²
Stripping length	6.5mm
Tightening torque, max.	0.25 Nm
Tightening torque, min.	0.22 Nm
Tinning type	matt
Type	CPS 3.50/20/180F SN GN BX
Type of connection	Flexible PCB-connector
Type of electric connection	Screw connection
UL File Number Search	UL Website
VPE height	51.00mm
VPE length	174.00mm
VPE width	136.00mm
w. plastic collar ferrule, DIN 46228 pt 4,0.2 mm²	w. plastic collar ferrule, DIN 46228 pt 4,0.75mm²
Wire connection method	Clamping yoke connection
Wire cross-section, AWG, max.	AWG 16
Wire cross-section, AWG, min.	AWG 30
