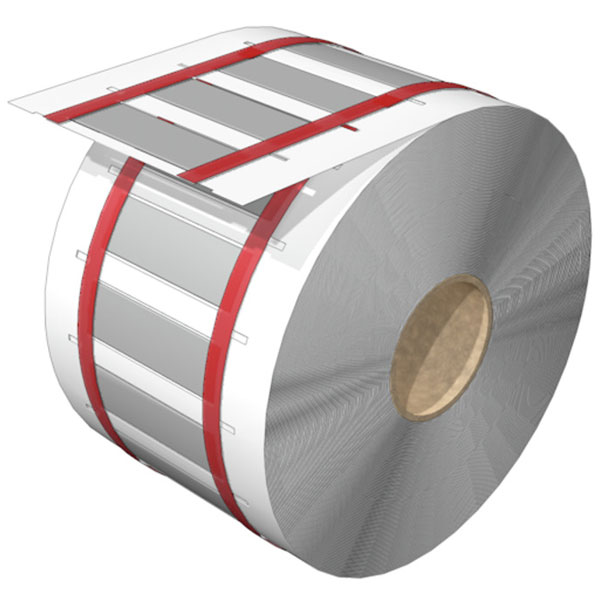

Weidmüller offers the cable coding system 2621820000, designed for cables with a diameter of 48-95mm and measuring 151mm in length. The system ensures clear and durable identification of cables, making it ideal for use in industrial settings where reliable cable management is required. By providing easy-to-read labels, the system enhances organisation and maintenance in electrical installations.
| Type |
Cable coding system |
| Colour |
white |
| Alternative product |
HS-HF 4.8-9.5/50 MM W |
| Available until |
2025-08-31T00:00:00+02:00 |
| Basic material |
Polyolefine |
| compatible printer |
THM MULTIMARK, THM |
| Conductor cross-section, max. |
16mm² |
| Conductor cross-section, min. |
4mm² |
| Conductor O.D. |
4.8 - 9.5mm |
| Conductor O.D., max. |
9.5mm |
| Conductor O.D., min. |
4.8mm |
| Cross-section for connected wire |
4 - 16mm² |
| Delivery status |
Discontinued |
| Depth |
0.77mm |
| Depth (inches) |
0.0303 inch |
| ECLASS 14 |
27-28-11-02 |
| ECLASS 15.0 |
27-28-11-02 |
| ETIM 10 |
EC001530 |
| ETIM 8.0 |
EC001530 |
| ETIM 9.0 |
EC001530 |
| GTIN (EAN) |
4050118625226 |
| Halogen |
No |
| Height |
49.8mm |
| Height (inches) |
1.9606 inch |
| Net weight |
1.02g |
| Number per roll |
500 |
| Operating Temperature Range |
-55...125°C |
| Operating temperature range, max. |
125°C |
| Operating temperature range, min. |
-55°C |
| Printed characters |
without |
| Rate of shrinkage |
2:1 |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Recommended shrinking temperature |
90°C |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Size of labelling field |
15.1 x 49.8 mm |
| Type of printing |
neutral |
| Version |
Conductor and cable markers, 4.8 - 9.5 mm, 49.8 |
| Width |
15.1mm |
| Width (inches) |
0.5945 inch |
