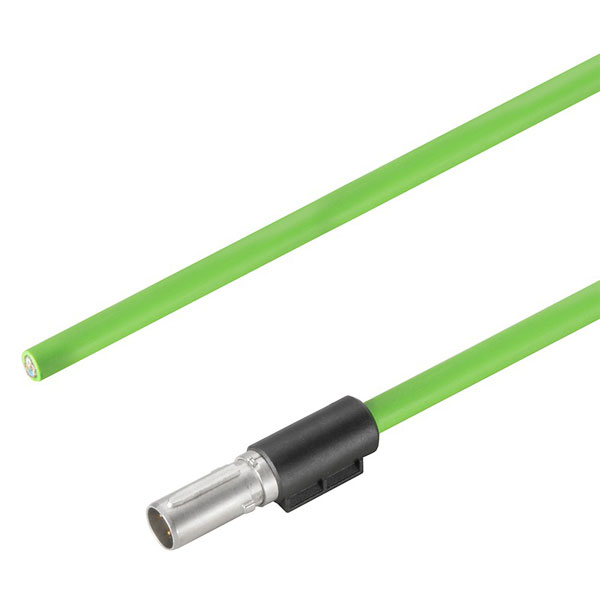

Weidműller 2003891500 Insert Cable Cat5e 15m

Weidmüller produces the 2003891500 Insert Cable which is a Cat5e cable with a length of 15 metres. This cable is suitable for high-speed data transmission and networking. It is typically used in industrial and commercial applications for reliable Ethernet connectivity.

LAN Category	5E
Length	15m
Colour	Green
Type	Data Insert Cable
Anti-kink sleeve	None
Cable construction	4x2
Cable Length	15 m
Cable Type	Other
Case connector connection 1	Other
Case connector connection 2	Other
Category	Cat. 5e
Coding	D-coded
Colour anti-kink sleeve	Black
Colour coding	white, yellow, blue, orange
Colour outer sheath	Green
Contact surface	Au (Gold)
Degree of protection (IP)	IP00
ECLASS 14	27-06-03-07
ECLASS 15.0	27-06-03-07
ETIM 10	EC002599
ETIM 8.0	EC002599
ETIM 9.0	EC002599
GTIN (EAN)	4050118521610
Halogen	No, halogen-free
Halogen free according to EN IEC 60754-1	false
Halogen free according to EN IEC 60754-2	false
Halogen free according to EN IEC 60754-3	false
Insulation	PE
Insulation Resistance	= 108 O
Limit temperature	-30 °C ... 90°C
Locking lever	false
Material connector housing, connection 1	Metal
Material connector housing, connection 2	Metal
Module side version	Male
Net weight	0g
Nominal Current	4 A
Nominal Voltage	250 V
Number of Poles	4
NVP value	63
Oil resistant according to EN IEC 60811-404	true
Opposite side version	open
Plugging cycles	= 100
Pollution severity	2
Qty.	1 items
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	2ac5c63f-7f5e-465a-860d-49cfb7bbe5b5
Sheath material	PUR
Sheathing colour	green
Shielded	Yes
Signs	±
Tolerance	0.2
Transmission rate	100 MBit/s
Type of connector connection 1	Other
Type of connector connection 2	Other
