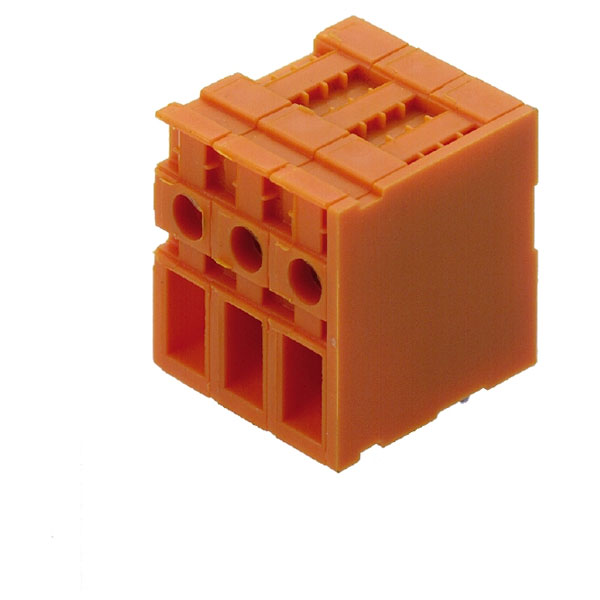

Weidmüller offers the 1786450000 PCB Terminal, a 7.62mm male unshrouded connector known for its robustness and reliability in electrical applications. This component is typically used in power distribution systems or control cabinets, providing a secure and efficient connection. Engineers rely on its ease of integration within industrial environments, ensuring optimal performance.
| Pitch |
7.62mm |
| Mounting Type |
Through Hole |
| Wire Termination |
Screwless |
| (Tu=40°C) |
pollution degree II/2 |
| Approvals |
CSA, UR |
| Available until |
2023-03-31T00:00:00+02:00 |
| Certificate No. (CSA) |
154685-1501716 |
| Certificate No. (UR) |
E60693 |
| Clampable conductor |
Cross-section for conductor connection |
| Clamping range, max. |
6mm² |
| Clamping range, min. |
0.13mm² |
| Clamping screw |
M 3 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Colour |
Orange |
| Colour chart (similar) |
RAL 2000 |
| Comparative Tracking Index (CTI) |
= 600 |
| Conductor outlet direction |
90° |
| Contact Material |
Copper |
| Contact Plating |
Copper, Tin |
| Contact surface |
tinned |
| Contains Lead |
No |
| Cross-section for conductor connection |
Type |
| Current |
30A |
| Current Rating |
10A |
| Delivery status |
Discontinued |
| Depth |
26mm |
| Depth (inches) |
1.0236 inch |
| ECLASS 14.0 |
27-46-01-01 |
| ECLASS 15.0 |
27-46-01-01 |
| ETIM 10.0 |
EC002643 |
| ETIM 8.0 |
EC002643 |
| ETIM 9.0 |
EC002643 |
| Fitted by customer |
No |
| Flammability Rating |
UL94 V-2 |
| Flexible, max. H05(07) V-K |
4mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| GTIN (EAN) |
4032248201082 |
| Height |
26mm |
| Height (inches) |
1.1614 inch |
| Height of lowest version |
26mm |
| Housing Colour |
Orange |
| Institute (CSA) |
CSA |
| Institute (UR) |
UR |
| Insulating material |
PA |
| Insulating material group |
I |
| Insulation Material |
Nylon |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| L1 in inches |
3.300 " |
| L1 in mm |
83.82mm |
| Layer structure of solder connection |
6...10 µm Sn |
| Max Operating Temperature |
100°C |
| Min Operating Temperature |
-50°C |
| Mount |
Through Hole |
| Mounting onto the PCB |
THT solder connection |
| Net weight |
92.76g |
| Notes |
•Additional variants on request |
| Number of Circuits |
12 |
| Number of Contacts |
12 |
| Number of levels |
1 |
| Number of Poles |
12 |
| Number of Positions |
12 |
| Number of Positions Per Level |
12 |
| Number of Rows |
1 |
| Number of solder pins per pole |
2 |
| Operating temperature, max. |
100°C |
| Operating temperature, min. |
-50°C |
| Orientation |
Right Angle |
| Packaging |
Box |
| Pin series quantity |
1 |
| Pitch in inches (P) |
0.300 " |
| Pitch in mm (P) |
7.62mm |
| Plug gauge in accordance with EN |
2.8 mm x 2.4 mm |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 1000 V / 32 A / 0.5 - 6mm² |
| Product family |
OMNIMATE Signal - series |
| Protection degree |
IP20 |
| Qty. |
50 items |
| Radiation Hardening |
No |
| Rated current (Use group B / CSA) |
25 A |
| Rated current (Use group B / UL 1059) 30 A |
Rated current (Use group D / UL 1059) 10 A |
| Rated current (Use group D / CSA) |
10 A |
| Rated current, min. number of poles |
32 A |
| Rated impulse voltage for surge voltage 4 kV |
Rated impulse voltage for surge voltage 4 kV |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated voltage (Use group D / UL 1059) 300 V |
| Rated voltage (Use group D / CSA) |
300 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reference text |
Length of ferrules is to be chosen depending on the product and the rated voltage., The outside |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
Yes |
| Screwdriver blade |
0.6 x 3.5 |
| Screwdriver blade standard |
DIN 5264 |
| Series |
TOP4GS |
| Solder eyelet hole diameter (D) |
1.3mm |
| Solder pin dimensions |
0.8 x 0.8 mm |
| Solder pin length (l) |
3.5mm |
| Solid, max. H05(07) V-U |
6mm² |
| Solid, min. H05(07) V-U |
0.5mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Stranded, min. H07V-R |
1.2mm² |
| Temperature range, installation, max. |
100°C |
| Temperature range, installation, min. |
-25°C |
| Termination |
Screw |
| tested acc. to standard |
IEC 60664-1, IEC 61984 |
| Tightening torque, max. |
0.6 Nm |
| Tightening torque, min. |
0.5 Nm |
| Touch-safe protection acc. to DIN VDE |
IP 20 |
| Type |
PCB terminal |
| UL 94 flammability rating |
V-2 |
| UL File Number Search |
UL Website |
| Version |
Printed circuit board terminals, 7.62 mm, Number |
| Voltage |
300V |
| Voltage Rating |
300V |
| Volume resistance |
1.40 mO |
| VPE height |
162.00mm |
| VPE length |
216.00mm |
| VPE width |
148.00mm |
| Width |
26mm |
| Width (inches) |
3.659 inch |
| Wire connection method |
TOP connection |
| Wire cross-section, AWG, max. |
AWG 10 |
| Wire cross-section, AWG, min. |
AWG 26 |
| wire end ferrule |
Stripping length |
| Wire Gauge (Max) |
26AWG |
| Wire Gauge (Min) |
10AWG |
