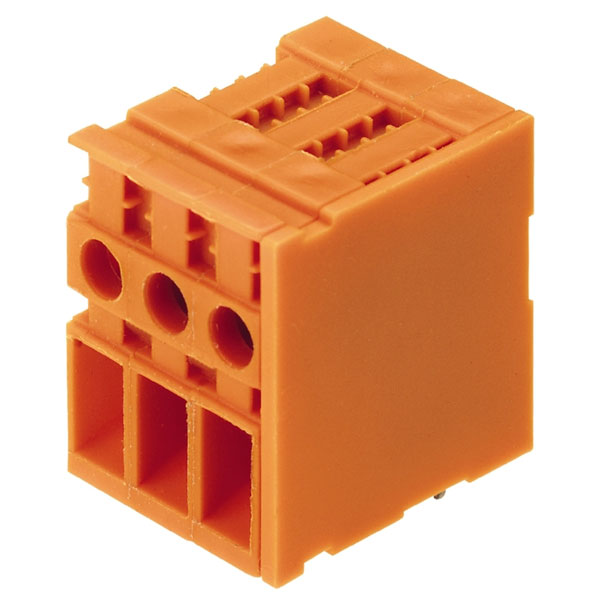

Weidműller 1786090000 PCB Terminal 6.35mm Unshrouded Female Connector

Weidmüller manufactures the 1786090000 PCB terminal, an unshrouded female connector with a 6.35mm pitch. It is designed for secure and reliable electrical connections on printed circuit boards. This connector is commonly used in industrial and automation applications due to its robust design.

Pitch	0.25inch
Mounting Type	Through Hole
Wire Termination	Screwless
(Tu=40°C)	pollution degree II/2
Approvals	CSA, UR
Available until	2023-03-31T00:00:00+02:00
Certificate No. (CSA)	154685-1501716
Certificate No. (UR)	E60693
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	6mm²
Clamping range, min.	0.13mm²
Clamping screw	M 3
class/ pollution degree II/2	class/ pollution degree III/2
Colour	Orange
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	= 600
Conductor outlet direction	90°
Contact Material	Copper
Contact Plating	Copper, Tin
Contact surface	tinned
Contains Lead	No
Cross-section for conductor connection	Type
Current	30A
Current Rating	10A
Delivery status	Discontinued
Depth	26mm
Depth (inches)	1.0236 inch
ECLASS 14.0	27-46-01-01
ECLASS 15.0	27-46-01-01
ETIM 10.0	EC002643
ETIM 8.0	EC002643
ETIM 9.0	EC002643
Fitted by customer	No
Flammability Rating	UL94 V-2
Flexible, max. H05(07) V-K	4mm²
Flexible, min. H05(07) V-K	0.5mm²
GTIN (EAN)	4032248200726
Height	26mm
Height (inches)	1.1614 inch
Height of lowest version	26mm
Housing Colour	Orange
Institute (CSA)	CSA
Institute (UR)	UR
Insulating material	PA
Insulating material group	I
Insulation Material	Nylon
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	2.500 "
L1 in mm	63.50mm
Layer structure of solder connection	6...10 µm Sn
Max Operating Temperature	100°C
Min Operating Temperature	-50°C
Mount	Through Hole
Mounting onto the PCB	THT solder connection
Net weight	84.9g
Notes	•Additional variants on request
Number of Circuits	11
Number of Contacts	11
Number of levels	1
Number of Poles	11
Number of Positions	11
Number of Positions Per Level	11
Number of Rows	1
Number of solder pins per pole	2
Operating temperature, max.	100°C
Operating temperature, min.	-50°C
Orientation	Right Angle
Package Quantity	50
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.250 "
Pitch in mm (P)	6.35mm
Plug gauge in accordance with EN	2.8 mm x 2.4 mm
pollution degree III/2	pollution degree III/3
Product data	IEC: 320 V / 32 A / 0.5 - 6mm²
Product family	OMNIMATE Signal - series
Protection degree	IP20
Qty.	50 items
Radiation Hardening	No
Rated current (Use group B / CSA)	25 A
Rated current (Use group B / UL 1059) 30 A	Rated current (Use group D / UL 1059) 10 A
Rated current (Use group D / CSA)	10 A
Rated current, min. number of poles	32 A
Rated impulse voltage for surge voltage 2.5 kV	Rated impulse voltage for surge voltage 2.5 kV
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated voltage (Use group D / UL 1059) 300 V
Rated voltage (Use group D / CSA)	300 V
Rated voltage for surge voltage class /	320 V
REACH SVHC	No SVHC above 0.1 wt%
Reference text	Length of ferrules is to be chosen depending on the product and the rated voltage., The outside
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
RoHS Compliant	Yes
Screwdriver blade	0.6 x 3.5
Screwdriver blade standard	DIN 5264
Series	TOP4GS
Solder eyelet hole diameter (D)	1.3mm
Solder pin dimensions	0.8 x 0.8 mm
Solder pin length (l)	3.5mm
Solid, max. H05(07) V-U	6mm²
Solid, min. H05(07) V-U	0.5mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Stranded, min. H07V-R	0.22mm²
Temperature range, installation, max.	100°C
Temperature range, installation, min.	-25°C
Termination	Screw
tested acc. to standard	IEC 60664-1, IEC 61984
Tightening torque, max.	0.6 Nm
Tightening torque, min.	0.5 Nm
Touch-safe protection acc. to DIN VDE	IP 20
Type	PCB terminal
UL 94 flammability rating	V-2
UL File Number Search	UL Website
Version	Printed circuit board terminals, 6.35 mm, Number
Voltage	300V
Voltage Rating	300V
Volume resistance	1.40 mO
VPE height	89.00mm
VPE length	336.00mm
VPE width	149.00mm
Width	26mm
Width (inches)	2.809 inch
Wire connection method	TOP connection
Wire cross-section, AWG, max.	AWG 10
Wire cross-section, AWG, min.	AWG 26
wire end ferrule	Stripping length
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	10AWG
