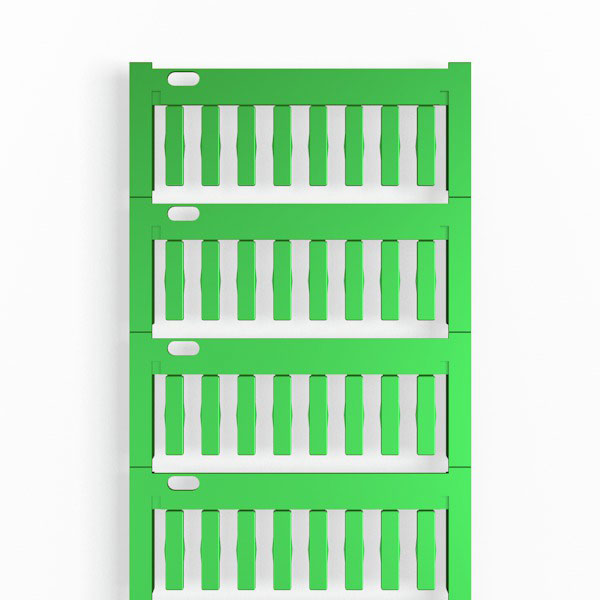

Weidműller 1714101688 Cable Coding System 4mm

Weidmüller VT-TM-I 18 MC NE GN is a Cable coding system, green, Conductor O.D.:1.3 - 35 mm, neutral, Polyamide 66, -40...100 °C. Halogen-free, low-pollutant markers for lines and cables. Attachment with cable ties.

Type	Cable coding system
Colour	Green
Material	Plastic
Basic material	Polyamide 66
Cable Diameter	1.3 - 35
compatible printer	PRINTJET CONNECT, MCP BASIC 2, MCP PLUS 2
Conductor O.D.	1.3 - 35mm
Conductor O.D., max.	35mm
Conductor O.D., min.	1.3mm
Depth	1.7mm
Depth (inches)	0.0669 inch
ECLASS 14	27-28-11-02
ECLASS 15.0	27-28-11-02
ETIM 10	EC001530
ETIM 8.0	EC001530
ETIM 9.0	EC001530
GTIN (EAN)	4008190332549
Halogen	No
Height	18mm
Height (inches)	0.7087 inch
Imprint	None
Length	18
Net weight	0.32g
Number of markers per combination	1 MultiCard = Insert markers
Number of markers per packaging unit	Form of supply
Number per sheet	64
Operating Temperature Range	-40...100°C
Operating temperature range, max.	100°C
Operating temperature range, min.	-40°C
Printed characters	neutral
Product Carbon Footprint	Cradle to gate
Qty.	640 items
REACH SVHC	No SVHC above 0.1 wt%
Recommended industries	Transportation, Machinery
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
Transparent	false
Type of printing	neutral
UL 94 flammability rating	V-2
Version	TM-I, Insert markers, 1.3 - 35 mm, 18 x 4 mm,
Width	4
Width (inches)	0.1575 inch
With label space	true
