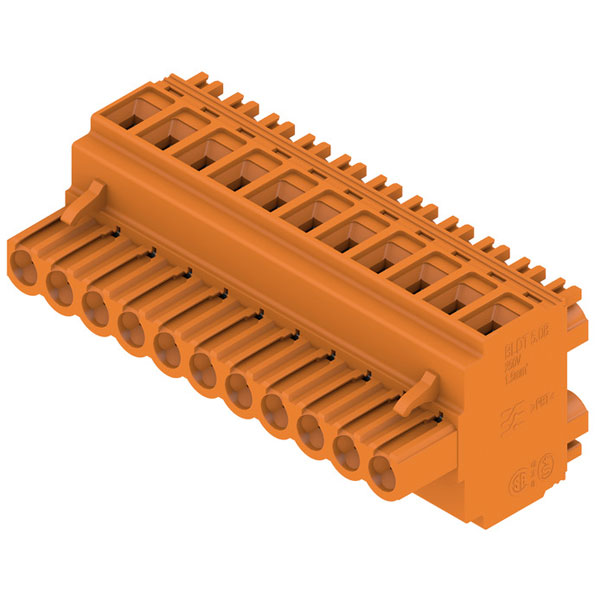

Weidműller 1644820000 Connector Female Unshrouded 5.08mm Pitch

Weidmüller 1644820000 is a female unshrouded connector with a 5.08mm pitch. It is designed for secure and reliable electrical connections in industrial applications. This part is commonly used in control systems and automation equipment.

Body Style	Plug, horizontal mount
Pitch	5.08mm
No. of Rows	1
Current Rating	14A
Colour	Orange
(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
Approvals	CSA, UR
Available until	2023-07-30T00:00:00+02:00
Can be coded	Yes
Certificate No. (CSA)	12400-365
Clampable conductor	Cross-section for conductor connection
Clamping range, max.	3.31mm²
Clamping range, min.	0.13mm²
Clamping screw	M 2.5
class/ pollution degree II/2	class/ pollution degree III/2
Color	Orange
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	= 200
Conductor outlet direction	90°/270°
Contact Material	Copper Alloy
Contact Plating	Tin
Contact surface	tinned
Contains Lead	No
Cross-section for conductor connection	Type
Current	10A
Delivery status	Discontinued
Depth	26.8mm
Depth (inches)	1.0551 inch
Flammability Rating	UL94 V-0
Flexible, max. H05(07) V-K	2.5mm²
Flexible, min. H05(07) V-K	0.2mm²
GTIN (EAN)	4008190284039
Height	26.8mm
Height (inches)	0.9173 inch
Housing Color	Orange
Institute (CSA)	CSA
Insulating material	PBT
Insulating material group	IIIa
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	2.000 "
L1 in mm	50.80mm
Layer structure of plug contact	4...8 µm Sn hot-dip tinned
Length	55.9mm
max.	0.5 Nm
Maximum Operating Temperature	100°C
Min Operating Temperature	-50°C
min.	0.4 Nm
Minimum Operating Temperature	-50°C
Mount	Free Hanging, Cable
Net weight	35.88g
Notes	•Additional variants on request
Number of Circuits	11
Number of Contacts	11
Number of Poles	11
Number of Positions	22
Number of Positions Per Level	11
Number of Rows	1
Operating temperature, max.	100°C
Orientation	Straight
Packaging	Box
Pin series quantity	1
Pitch in inches (P)	0.200 "
Pitch in mm (P)	5.08mm
Plug gauge in accordance with EN	2.4 mm x 1.5 mm ; 2.4 mm
Plugging cycles	25
Plugging force/pole, max.	10 N
pollution degree III/2	pollution degree III/3
Product data	IEC: 400 V / 14 A / 0.2 - 2.5mm²
Product family	OMNIMATE Signal - series BL/SL 5.08
Product image	Dimensional drawing
Protection degree	IP20
Pulling force/pole, max.	7.5 N
Radiation Hardening	No
Rated cross-section	2.5mm²
Rated current (Use group B / CSA)	10 A
Rated current (Use group B / UL 1059) 10 A	Rated current (Use group D / UL 1059) 10 A
Rated current (Use group D / CSA)	10 A
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated voltage (Use group D / UL 1059) 300 V
Rated voltage (Use group D / CSA)	300 V
Ratings	IP20
REACH SVHC	No SVHC above 0.1 wt%
Reference text	The outside diameter of the plastic collar should not be larger than the pitch (P), Length of ferrules
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
RoHS Compliant	Yes
Screwdriver blade	0.6 x 3.5
Screwdriver blade standard	DIN 5264
Series	Omnimate BL
Solid, max. H05(07) V-U	2.5mm²
Solid, min. H05(07) V-U	0.2mm²
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Stripping length	7mm
Temperature range, installation, max.	100°C
Temperature range, installation, min.	-25°C
Termination	Screw
tested acc. to standard	IEC 60664-1, IEC 61984
Tightening torque	Torque type
Type of connection	Field connection
UL 94 flammability rating	V-0
Usage information	Tightening torque
Version	PCB plug-in connector, female plug, 5.08 mm,
Voltage	300V
Voltage Rating	300V
Volume resistance	=5 mO
VPE height	32.00mm
VPE length	347.00mm
VPE width	135.00mm
Width	23.3mm
Width (inches)	2.2 inch
Wire connection method	Screw connection
Wire cross-section, AWG, max.	AWG 12
Wire cross-section, AWG, min.	AWG 26
wire end ferrule	Stripping length
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	12AWG
