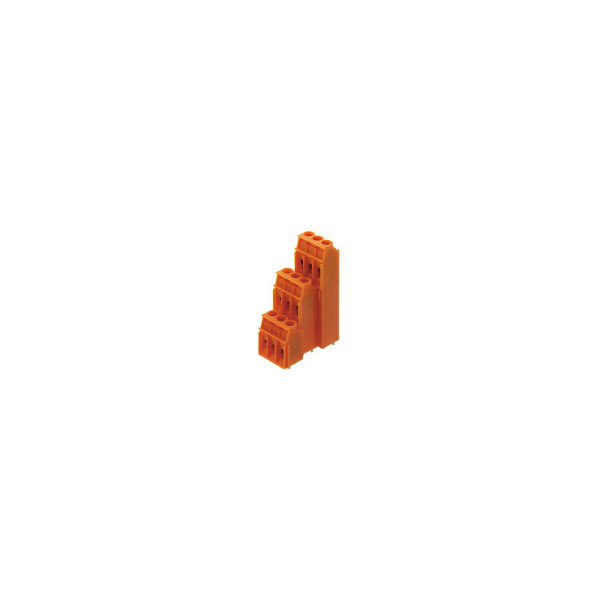

Weidmüller manufactures the 1596340000 terminal block featuring 12 positions with a 5.08mm pitch, ideal for soldering applications. This unshrouded terminal block supports secure electrical connections and is typically used in control panels, machinery, and electrical distribution systems. Terminal blocks like these are vital for managing and organising complex wiring systems in industrial environments.
| Pitch |
5.08mm |
| No. of Rows |
3 |
| Current Rating |
10A |
| Colour |
Orange |
| (Tu=20°C) |
(Tu=40°C) |
| (Tu=40°C) |
pollution degree II/2 |
| 0470 |
57 106 |
| 60999 a x b; ø |
be chosen depending |
| Approvals |
CSA, UR |
| Available until |
2022-03-30T00:00:00+02:00 |
| Certificate No. (CSA) |
200039-1202191 |
| Certificate No. (UR) |
E60693 |
| Clamping range, max. |
6mm² |
| Clamping range, min. |
0.13mm² |
| Clamping screw |
M 3 |
| class/ pollution degree II/2 |
class/ pollution degree III/2 |
| Coating |
1-3 µm Ni, 4-6 µm SN |
| Color |
Orange |
| Colour chart (similar) |
RAL 2000 |
| Comparative Tracking Index (CTI) |
= 600 |
| Conductor outlet direction |
90° |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin |
| Contact surface |
tinned |
| Current |
20A |
| Delivery status |
Discontinued |
| Depth |
32mm |
| Depth (inches) |
1.2598 inch |
| ECLASS 14 |
27-46-01-01 |
| ECLASS 15.0 |
27-46-01-01 |
| ETIM 10 |
EC002643 |
| ETIM 8.0 |
EC002643 |
| ETIM 9.0 |
EC002643 |
| Fitted by customer |
Yes |
| Flammability Rating |
UL94 V-2 |
| Flexible, max. H05(07) V-K |
4mm² |
| Flexible, min. H05(07) V-K |
0.5mm² |
| GTIN (EAN) |
4008190002701 |
| Height |
48.2mm |
| Height (inches) |
1.8976 inch |
| Height of lowest version |
45mm |
| Housing Color |
Orange |
| Institute (CSA) |
CSA |
| Institute (UR) |
UR |
| Insulating material |
PA |
| Insulating material group |
I |
| Insulation Material |
Nylon |
| IPC conformity |
Conformity: The products are developed, manufactured and delivered according international |
| L1 in inches |
0.600 " |
| L1 in mm |
15.24mm |
| Layer structure of solder connection |
4...6 µm Ni / 4...6 µm Sn |
| Max Operating Temperature |
100°C |
| Max. adjacent poles per row |
72 |
| Min Operating Temperature |
-50°C |
| min. |
max. |
| Mount |
Through Hole |
| Mounting onto the PCB |
THT solder connection |
| Net weight |
26.78g |
| Notes |
•Additional variants on request |
| Number of Circuits |
4 |
| Number of Contacts |
12 |
| Number of levels |
3 |
| Number of Poles |
12 |
| Number of Positions Per Level |
4 |
| Number of Rows |
3 |
| Operating temperature, max. |
100°C |
| Operating temperature, min. |
-50°C |
| Orientation |
Straight |
| Package Quantity |
50 |
| Packaging |
Box |
| Pin series quantity |
3 |
| Pitch in inches (P) |
0.200 " |
| Pitch in mm (P) |
5.08mm |
| Plug gauge in accordance with EN |
2.8 mm x 2.4 mm; 3.0 mm |
| pollution degree III/2 |
pollution degree III/3 |
| Product data |
IEC: 500 V / 32 A / 0.5 - 6mm² |
| Product family |
OMNIMATE Signal - series |
| Protection degree |
IP20 |
| Radiation Hardening |
No |
| Rated current (Use group B / CSA) |
20 A |
| Rated current (Use group B / UL 1059) 20 A |
Rated current (Use group D / UL 1059) 10 A |
| Rated current (Use group D / CSA) |
10 A |
| Rated voltage (Use group B / CSA) |
300 V |
| Rated voltage (Use group B / UL 1059) 300 V |
Rated voltage (Use group D / UL 1059) 300 V |
| Rated voltage (Use group D / CSA) |
300 V |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Reference text |
Length of ferrules is to |
| Reference to approval values |
Specifications are |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| RoHS Compliant |
Yes |
| Screwdriver blade |
0.6 x 3.5 |
| Screwdriver blade standard |
DIN 5264 |
| Series |
Omnimate LP |
| Solder eyelet hole diameter (D) |
1.3mm |
| Solder eyelet hole diameter tolerance (D)+ 0,1 mm |
Number of solder pins per pole |
| Solder pin dimensions |
0.75 x 0.9 mm |
| Solder pin length (l) |
3.2mm |
| Solid, max. H05(07) V-U |
6mm² |
| Solid, min. H05(07) V-U |
0.5mm² |
| Storage temperature, max. |
70°C |
| Storage temperature, min. |
-40°C |
| Stripping length |
6mm |
| Temperature range, installation, max. |
100°C |
| Temperature range, installation, min. |
-25°C |
| Termination |
Screw |
| tested acc. to standard |
IEC 60664-1, IEC 61984 |
| Tightening torque, max. |
0.6 Nm |
| Tightening torque, min. |
0.5 Nm |
| Tinning type |
matt |
| UL 94 flammability rating |
V-2 |
| UL File Number Search |
UL Website |
| Version |
Printed circuit board terminals, 5.08 mm, Number |
| Voltage |
300V |
| Voltage Rating |
300V |
| Volume resistance |
1.20 mO |
| VPE height |
50.00mm |
| VPE length |
204.00mm |
| VPE width |
203.00mm |
| w. plastic collar ferrule, DIN 46228 pt 4,0.5 mm² |
w. plastic collar ferrule, DIN 46228 pt 4,2.5mm² |
| Width |
18.38mm |
| Width (inches) |
0.7236 inch |
| Wire connection method |
Clamping yoke connection |
| Wire cross-section, AWG, max. |
AWG 12 |
| Wire cross-section, AWG, min. |
AWG 26 |
| Wire Gauge (Max) |
26AWG |
| Wire Gauge (Min) |
12AWG |
