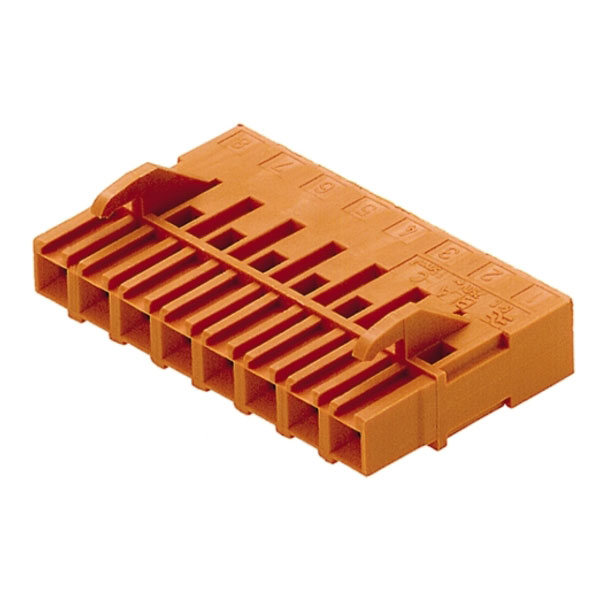

Weidműller 1577480000 Connector 5.08mm Unshrouded Female

Weidmüller manufactures the 1577480000 connector, a 5.08mm unshrouded female component. This connector is known for its reliable connection and compact design. It is typically used in industrial and automation applications.

Pitch	5.08mm
No. of Rows	1
Colour	Orange
(Tu=20°C)	(Tu=40°C)
(Tu=40°C)	pollution degree II/2
57 106	0470
Available until	2024-09-30T00:00:00+02:00
Can be coded	Yes
Certificate No. (CSA)	12400-158
Certificate No. (UR)	E60693
Clamping range, max.	2.5mm²
Clamping range, min.	0.22mm²
class/ pollution degree II/2	class/ pollution degree III/2
Color	Orange
Colour chart (similar)	RAL 2000
Comparative Tracking Index (CTI)	= 200
Conductor outlet direction	180°
Contact Material	Cu-alloy
Current	10A
Delivery status	This article will no longer be available in the future.
Depth	24.5mm
Depth (inches)	0.9646 inch
Flammability Rating	UL94 V-0
Gender	Female
GTIN (EAN)	4008190156251
Height	11.6mm
Height (inches)	0.4567 inch
Institute (CSA)	CSA
Institute (UR)	UR
Insulating material	PBT GF
Insulating material group	IIIa
IPC conformity	Conformity: The products are developed, manufactured and delivered according international
L1 in inches	0.800 "
L1 in mm	20.32mm
Layer structure of plug contact	4...8 µm Sn hot-dip tinned
Maximum Operating Temperature	120°C
Min Operating Temperature	-50°C
min.	max.
Minimum Operating Temperature	-50°C
Mount	Free Hanging
Net weight	3.6g
Notes	•Additional variants on request
Number of Contacts	5
Number of levels	1
Number of Poles	5
Number of Positions	5
Number of Positions Per Level	5
Number of Rows	1
Operating temperature, max.	120°C
Packaging	Bulk
Pin series quantity	1
Pitch in inches (P)	0.200 "
Pitch in mm (P)	5.08mm
Plugging cycles	25
pollution degree III/2	pollution degree III/3
Product data	IEC: 500 V / 20 A
Product family	OMNIMATE Signal - series
Radiation Hardening	No
Rated cross-section	2.5mm²
Rated current (Use group B / CSA)	10 A
Rated current (Use group B / UL 1059) 10 A	Rated current (Use group D / UL 1059) 10 A
Rated current (Use group D / CSA)	10 A
Rated voltage (Use group B / CSA)	300 V
Rated voltage (Use group B / UL 1059) 300 V	Rated voltage (Use group D / UL 1059) 300 V
Rated voltage (Use group D / CSA)	300 V
REACH SVHC	No SVHC above 0.1 wt%
Reference text	The outside diameter of
Reference to approval values	Specifications are
ROHS	Conform
RoHS Compliance Status	Compliant without exemption
RoHS Compliant	Yes
Series	Unimate BLA
Storage temperature, max.	70°C
Storage temperature, min.	-40°C
Stripping length	5mm
Temperature range, installation, max.	120°C
Temperature range, installation, min.	-25°C
Termination	Crimp
tested acc. to standard	IEC 60664-1, IEC 61984
Type of connection	Field connection
UL 94 flammability rating	V-0
UL File Number Search	UL Website
Version	PCB plug-in connector, female plug, 5.08 mm,
Voltage	300V
VPE height	69.00mm
VPE length	147.00mm
VPE width	74.00mm
Width	25.4mm
Width (inches)	1 inch
Wire connection method	Crimp connection
Wire cross-section, AWG, max.	AWG 14
Wire cross-section, AWG, min.	AWG 26
Wire Gauge (Max)	26AWG
Wire Gauge (Min)	14AWG
