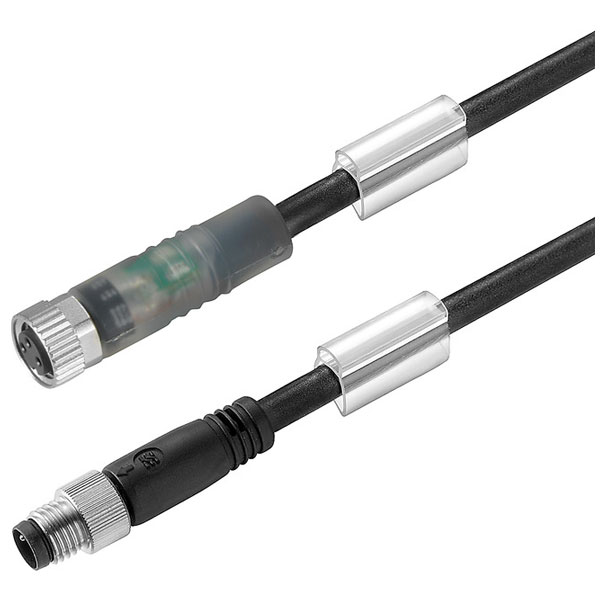

Weidmüller provides the 1550230050 Cable Connecting Line, which features an M8 male shrouded connector designed for reliable electrical connections. This robust connector ensures secure attachment in industrial automation and sensor systems for enhanced performance. It is typically used in settings requiring compact and dependable wiring solutions.
| Length |
0.5 |
| Colour |
Black |
| Type |
Sensor/Actuator Cable |
| Acceleration |
5 m/s² |
| Bending cycles |
12 Mio |
| Bending cycles at torsion |
> 5 Mio. |
| Bending radius, min., moving |
10 x cable diameter |
| Bending radius, min., stationary |
5 x cable diameter |
| Cable Length |
0.5 m |
| Cable Type |
Multi-core |
| Coding |
A-coded |
| Colour coding |
brown, blue, black |
| Configurable cable length |
No |
| Connection thread |
M8 / M8 |
| Contact surface |
Gold-plated |
| Continuity resistance |
0 |
| Core cross-section |
0.25mm² |
| Core in accordance with UL AWM style 10493 (80 °C / 300 V) |
Irradiation crosslinked |
| Degree of protection (IP) |
IP67 |
| ECLASS 14 |
27-06-03-11 |
| ECLASS 15.0 |
27-06-03-11 |
| ETIM 10 |
EC001855 |
| ETIM 8.0 |
EC001855 |
| ETIM 9.0 |
EC001855 |
| GTIN (EAN) |
4050118485240 |
| Halogen |
No |
| Halogen free |
true |
| Housing main material |
PUR |
| Hydrolysis and microbe resistant |
Yes |
| Insulation |
PP |
| Insulation Resistance |
108 O |
| jumpered |
No |
| LED |
Yes |
| Length of torsion |
1 m |
| Male |
Socket |
| Male, straight |
Straight socket |
| Material of cable sheath |
Polyurethane (PUR) |
| Material of contact surface |
Gold |
| Net weight |
18g |
| Nominal Current |
4 A |
| Nominal Voltage |
24 V |
| Number of Poles |
3 |
| Outer cladding in accordance with UL |
20549 (80 °C / 300 V) |
| Outside Diameter |
4.1 mm ± 0.2mm |
| Permitted cable outer temperature after assembling without vibration |
-40 - 80 |
| Permitted cable outer temperature during assembling/handling |
-25 - 80 |
| Plug left |
M8, IP69, male contact, |
| Plug right |
M8, IP69, female |
| Plugging cycles |
= 100 |
| Pollution severity |
3 |
| Positioning cable feed, box-sided |
Straight |
| Positioning cable feed, field-sided |
Straight |
| Protection degree |
IP67, IP68, when screwed |
| Qty. |
1 items |
| Rated current In |
4 |
| Rated voltage |
24 |
| REACH SVHC |
Lead 7439-92-1 |
| Resistance to oils |
in accordance with IEC |
| Resistance to spread of flame |
in accordance with IEC |
| Resistant to welding beads |
No |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant |
| SCIP |
1c533b66-fcff-4da5-b89f-fd55fbf5cb55 |
| Screened |
false |
| Sheath material |
PUR |
| Sheathing colour |
black |
| Shielded |
No |
| Speed |
5 m/s |
| Suitable for cable carriers |
Yes |
| Temperature range of housing |
-25…+85°C |
| Temperature range, moving |
-25...80°C |
| Temperature range, stationary |
-40...80°C |
| Threaded ring material |
Brass, nickel-plated |
| Torsion resistance |
360 °/m |
| Type of electrical connection, box-sided |
M8 |
| Type of electrical connection, field-sided |
M8 |
| Type of plug-in contact, box-sided |
Male (plug) |
| Type of plug-in contact, field sided |
Female (bus) |
| Vulcanized |
false |
| Welding spark resistance |
No |
| Wiring diagram |
The ideal tool: Screwty ® with torque function |
| With LED indication |
true |
