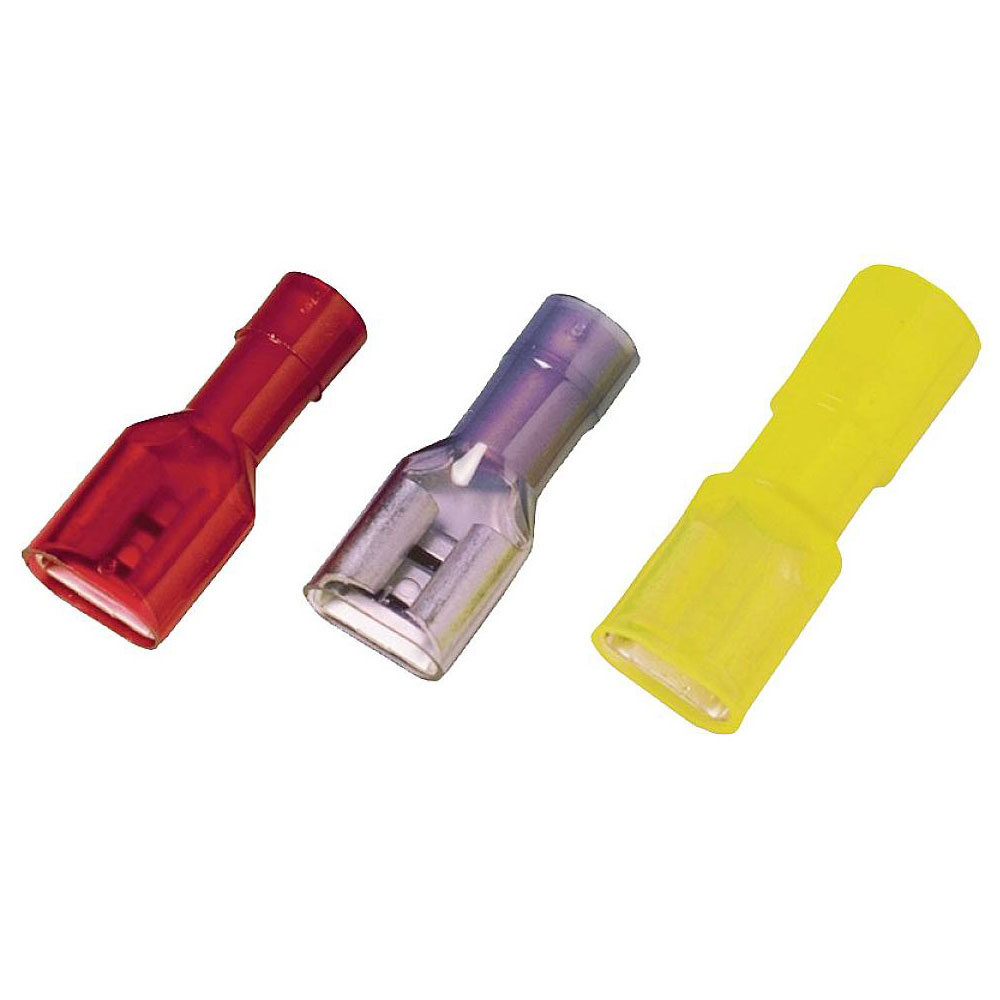

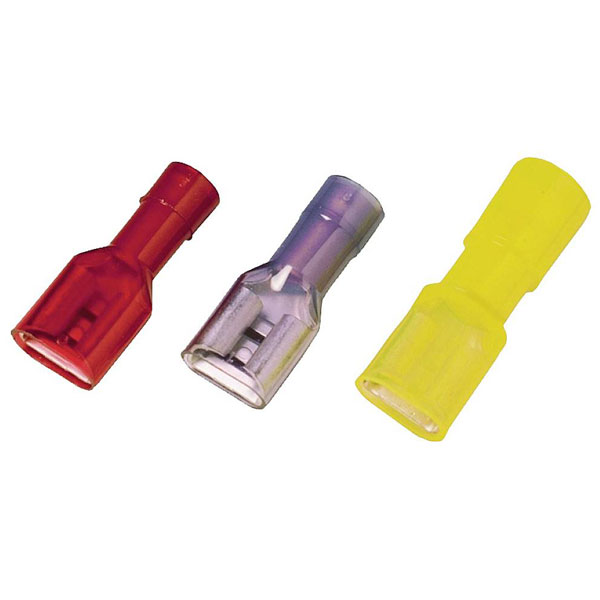

Weidmüller 1491890000 Blade receptacle 4.8mm 0.8mm Insulated Red 100 pcs

Weidmuller 1491890000 is a high-quality blade receptacle connector designed for precision and reliability in electrical applications. This product features a connector width of 4.8 mm and a thickness of 0.8 mm, offering a secure and stable fit for a variety of electronic components. The connector is fully insulated and coloured red, facilitating easy identification and colour coding during assembly processes. It is typically used in automotive wiring, control panel assemblies, and industrial equipment circuitry where durable and efficient electrical connections are essential. This package includes 100 pieces, ensuring ample supply for extensive projects or maintenance work.

Insulation	Insulated
Colour	Red
Blade Length	20.2mm
Blade Width	4.8mm
Conductor Cross-section	1mm²
Conductor cross-section, max.	1mm²
Conductor cross-section, min.	0.5mm²
Connector thickness	0.8mm
Content	100
Cross-section range	0.5 - 1mm²
Dimension	4.8 x 0.8 mm
ECLASS 14	27-44-03-92
ECLASS 15.0	27-44-03-92
ETIM 10	EC000516
ETIM 8.0	EC000516
ETIM 9.0	EC000516
GTIN (EAN)	4050118301786
Halogen free	true
Identification colour	red
Insulation Material	PVC
Material	Copper
Material insulation	Polyamide (PA)
Material/plastic	PVC
Max. current (Imax)	15
Maximum Wire Size AWG	18
Maximum Wire Size mm2	1mm²
Min. cross section	0.5mm²
Net weight	0.85g
Nominal cross section	0.5 - 1
Plug dimensions	Flat 4.8x0.8mm
Plug-in density (d3)	0.8mm
Plug-in width (d2)	4.8mm
Product Type	Blade receptacle
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3
Size	4.8 x 0.8 mm
Type	VFSKHV/0,5-1,0/488
Version	cable lug, terminal end,Insulated cable connec-
Weight	0.98g
With cam clamp	false
With tap spreader	false
