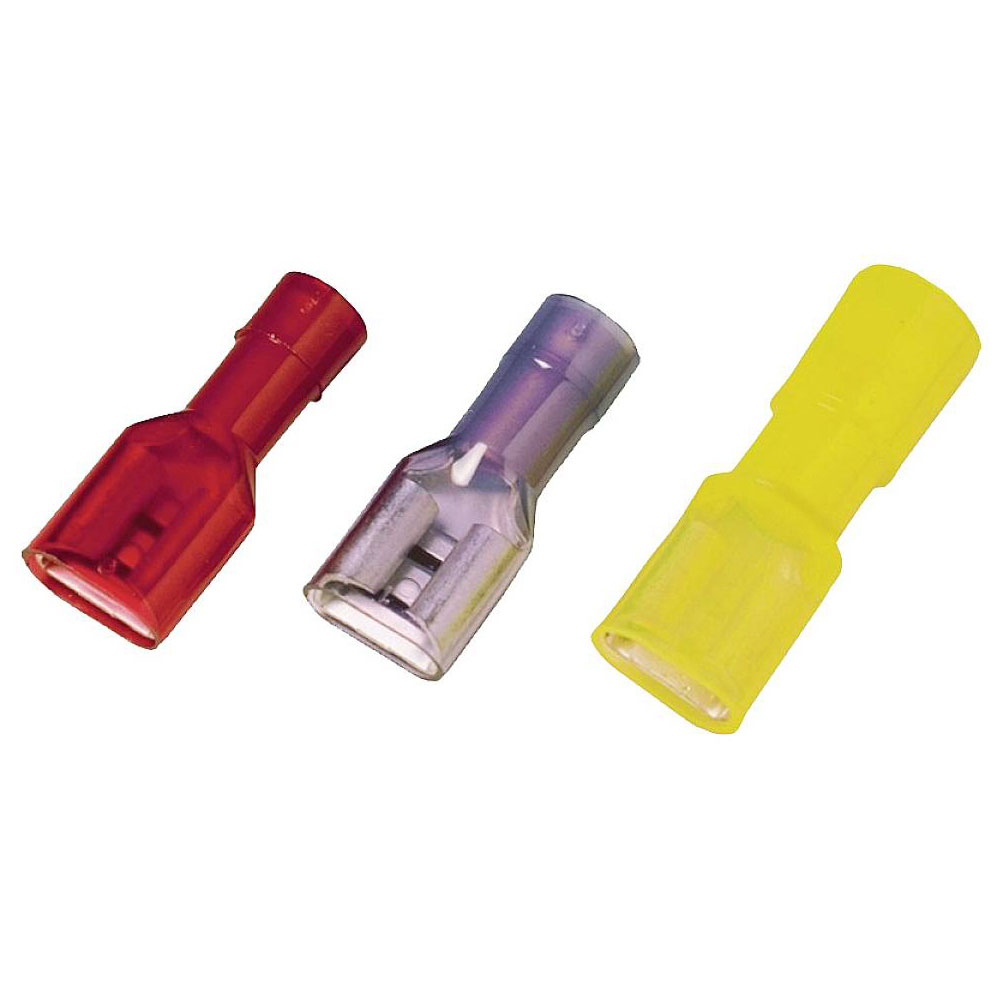

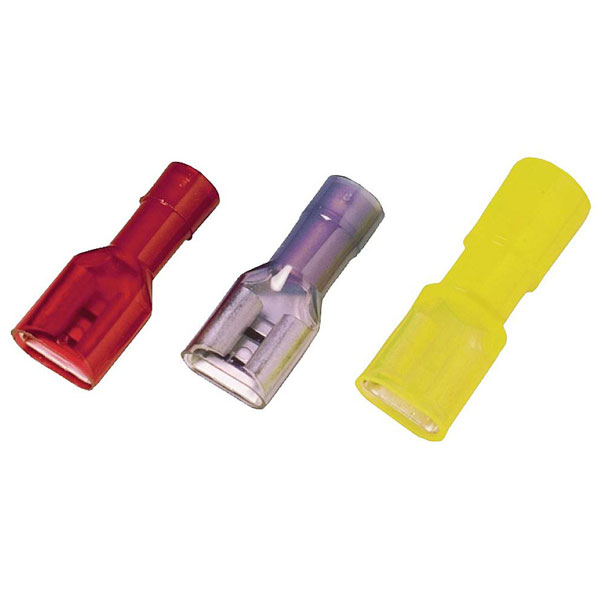

Weidmüller 1491870000 Blade receptacle red 2.8 mm 0.8 mm insulated 100 pcs

Weidmuller 1491870000 is a blade terminal connector that features a receptacle design with a precise connector width of 2.8 mm and a connector thickness of 0.8 mm. The product is insulated in red, offering safety and visibility in various electrical assemblies, and is supplied in a pack of 100 pieces. These blade receptacle connectors are ideally suited for applications requiring reliable and secure connections in automotive, industrial machinery, and electrical panels, where space and connection integrity are critical. Designed for efficiency in production and maintenance tasks, these connectors help ensure consistent performance in demanding environments.

Insulation	Insulated
Colour	Red
Blade Length	19.2mm
Blade Width	2.8mm
Conductor Cross-section	1mm²
Conductor cross-section, max.	1mm²
Conductor cross-section, min.	0.5mm²
Connector thickness	0.8mm
Content	100
Cross-section range	0.5 - 1mm²
Dimension	2.8 x 0.8 mm
ECLASS 14	27-44-03-92
ECLASS 15.0	27-44-03-92
ETIM 10	EC000516
ETIM 8.0	EC000516
ETIM 9.0	EC000516
GTIN (EAN)	4050118301908
Halogen free	true
Identification colour	red
Insulation Material	PVC
Material	Copper
Material insulation	Polyamide (PA)
Material/plastic	PVC
Max. current (Imax)	15
Maximum Wire Size AWG	18
Maximum Wire Size mm2	1mm²
Min. cross section	0.5mm²
Net weight	0.78g
Nominal cross section	0.5 - 1
Plug dimensions	Flat 2.8x0.8mm
Plug-in density (d3)	0.8mm
Plug-in width (d2)	2.8mm
Product Type	Blade receptacle
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3
Size	2.8 x 0.8 mm
Type	VFSKHV/0,5-1,0/288
Version	cable lug, terminal end,Insulated cable connec-
Weight	0.78g
With cam clamp	false
With tap spreader	false
