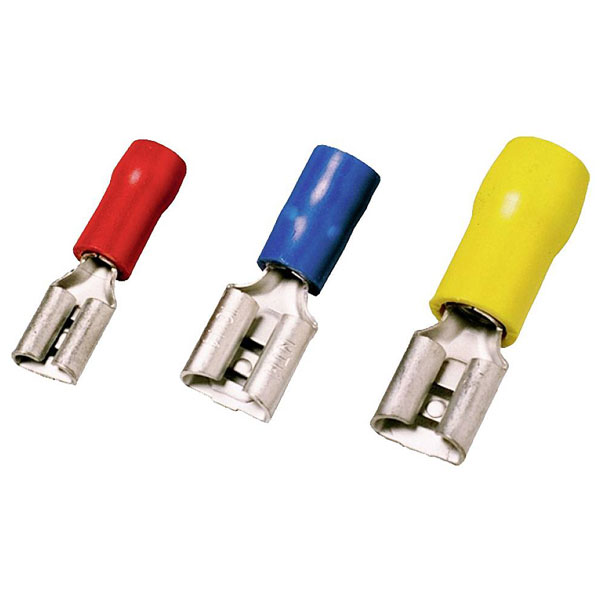

Weidmuller 1491720000 is a blade receptacle connector designed for secure and effective electrical connections in various applications. This connector features a width of 6.3 mm and a thickness of 0.8 mm, offering a partially insulated design for enhanced safety during usage. Its blue insulation aids in easy identification during installation and maintenance. This product is particularly suitable for use in automotive and industrial control systems, where reliable connection integrity is essential. Supplied in a package of 100 pieces, this connector enables efficient assembly for mass installations.
| Insulation |
Partially Insulated |
| Colour |
Blue |
| Blade Length |
20.8mm |
| Blade Width |
6.3mm |
| Conductor Cross-section |
2.5mm² |
| Conductor cross-section, max. |
2.5mm² |
| Conductor cross-section, min. |
1.5mm² |
| Connector thickness |
0.8mm |
| Content |
100 |
| Cross-section range |
1.5 - 2.5mm² |
| Dimension |
6.3 x 0.8 mm |
| ECLASS 14 |
27-44-03-92 |
| ECLASS 15.0 |
27-44-03-92 |
| ETIM 10 |
EC000516 |
| ETIM 8.0 |
EC000516 |
| ETIM 9.0 |
EC000516 |
| GTIN (EAN) |
4050118301564 |
| Halogen free |
true |
| Identification colour |
blue |
| Insulation Material |
PVC |
| Material |
Copper |
| Material insulation |
Polyamide (PA) |
| Material/plastic |
PVC |
| Max. current (Imax) |
26 |
| Maximum Wire Size AWG |
14 |
| Maximum Wire Size mm2 |
2.5mm² |
| Min. cross section |
1.5mm² |
| Net weight |
0.99g |
| Nominal cross section |
1.5 - 2.5 |
| Plug dimensions |
Flat 6.3x0.8mm |
| Plug-in density (d3) |
0.5mm |
| Plug-in width (d2) |
6.3mm |
| Product Type |
Blade receptacle |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
7b42d2b9-0a0f-4f66-a989-e9bfbbfeb1b3 |
| Size |
6.3 x 0.8 mm |
| Type |
VFSKHI/1,5-2,5/638 |
| Version |
cable lug, terminal end,Insulated cable connec- |
| Weight |
1.124g |
| With cam clamp |
false |
| With tap spreader |
false |
