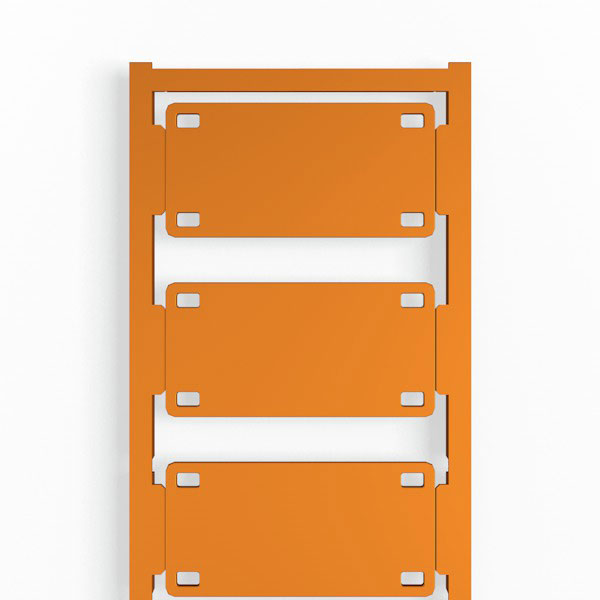

Weidmüller SFX 30/60 MC NE OR is a Cable coding system, orange, Conductor O.D.:7 - 40 mm, Polyamide 66, -40...100 °C. Halogen-free, low-pollutant markers for lines and cables. Attachment with cable ties.
| Type |
Cable coding system |
| Colour |
Orange |
| Material |
Plastic |
| Basic material |
Polyamide 66 |
| Cable Diameter |
7 - 40 |
| compatible printer |
PRINTJET CONNECT, MCP BASIC 2, MCP PLUS 2 |
| Conductor cross-section, max. |
500 mm² |
| Conductor cross-section, min. |
16 mm² |
| Conductor O.D. |
7 - 40mm |
| Conductor O.D., max. |
40mm |
| Conductor O.D., min. |
7mm |
| Core diameter |
16 - 500 |
| Cross-section for connected wire |
16 - 500 mm² |
| Depth |
1.2mm |
| Depth (inches) |
0.0472 inch |
| ECLASS 14.0 |
27-28-11-02 |
| ECLASS 15.0 |
27-28-11-02 |
| ETIM 10.0 |
EC001530 |
| ETIM 8.0 |
EC001530 |
| ETIM 9.0 |
EC001530 |
| GTIN (EAN) |
4050118300253 |
| Halogen |
No |
| Height |
60mm |
| Height (inches) |
2.3622 inch |
| Length |
60 |
| Mounting method |
Other |
| Net weight |
3.96g |
| Number of markers per combination |
1 MultiCard = Conductor and cable markers |
| Number of markers per packaging unit |
Form of supply |
| Operating Temperature Range |
-40...100 °C |
| Operating temperature range, max. |
100 °C |
| Operating temperature range, min. |
-40 °C |
| Product Carbon Footprint |
Cradle to gate |
| Qty. |
30 items |
| REACH SVHC |
No SVHC above 0.1 wt% |
| Recommended industries |
Transportation, Machinery |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant without exemption |
| Size of labelling field |
45 x 30 mm |
| Transparent |
false |
| Type of printing |
neutral |
| UL 94 flammability rating |
V-2 |
| Width |
30 |
| Width (inches) |
1.1811 inch |
| With label space |
true |
