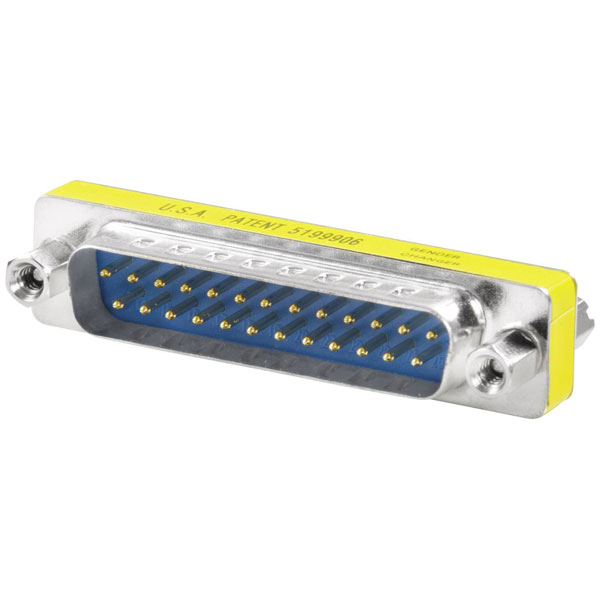

The Weidmüller FrontCom® gender changer D-Sub 25-pin, socket/plug is designed to convert D-Sub connections between sockets and plugs. This product features a robust design suitable for seamless gender transitioning in various data and communication applications. It is commonly used in industrial and commercial settings for flexible connectivity solutions.
| Type |
IE-FCI-D25-FM |
| Casing |
D-Sub |
| Certificate No. (DNV) |
TAA000022B |
| Certificate No. (UR) |
E497345 |
| Colour |
Other |
| Compatible with Grade2TV according to XP-C 90-483 |
false |
| Compatible with Grade3TV according to XP-C 90-483 |
false |
| Connection Angle |
180° |
| Contact Resistance |
= 20 mO |
| Contact surface |
Gold-plated |
| Current-carrying capacity |
3 A |
| Dielectric strength, contact / contact |
1 kV eff /1 min. |
| Dim |
(L x W x H) 53.1 x 12.5 x 17.6 mm |
| ECLASS 14 |
27-18-28-92 |
| ECLASS 15.0 |
27-18-28-92 |
| ETIM 10 |
EC001121 |
| ETIM 8.0 |
EC001121 |
| ETIM 9.0 |
EC001121 |
| Factory colour |
Multi-coloured |
| GTIN (EAN) |
4050118255652 |
| Height |
17.6mm |
| Height (inches) |
0.7047 inch |
| Hole spacing |
47.04mm |
| Housing main material |
SPCC |
| Housing surface |
tin-plated |
| Insert type |
Signal insert D-Sub, 25- |
| Insulation Resistance |
1000 MO at 500 V DC |
| Length |
53.1mm |
| Length (inches) |
2.0905 inch |
| Material insulator |
PBT glass fibre reinforced |
| Misc Attribute |
IE-FCI-D25-FM |
| Model |
Plug |
| Net weight |
17.39g |
| Number of Poles |
25 |
| Pins |
25 |
| Protection degree |
IP20 |
| Qty. |
1 items |
| REACH SVHC |
Lead 7439-92-1 |
| ROHS |
Conform |
| RoHS Compliance Status |
Compliant with exemption |
| SCIP |
14f36bdb-8bcd-4f24-8fb3-9538ad1abec6 |
| Special tool necessary |
false |
| Storage temperature |
Operating temperature |
| Suitable for flat cable |
false |
| Suitable for litz wire conductor |
false |
| Suitable for round cable |
true |
| Suitable for solid conductors |
true |
| Temperature Range |
-55 - +105°C |
| Transparent |
false |
| Type of connector |
Other |
| UL File Number Search |
UL Website |
| Version |
FrontCom, Signal insert D-Sub, 25-pole, Socket / |
| Weight |
17.39g |
| Width |
12.5mm |
| Width (inches) |
0.4921 inch |
