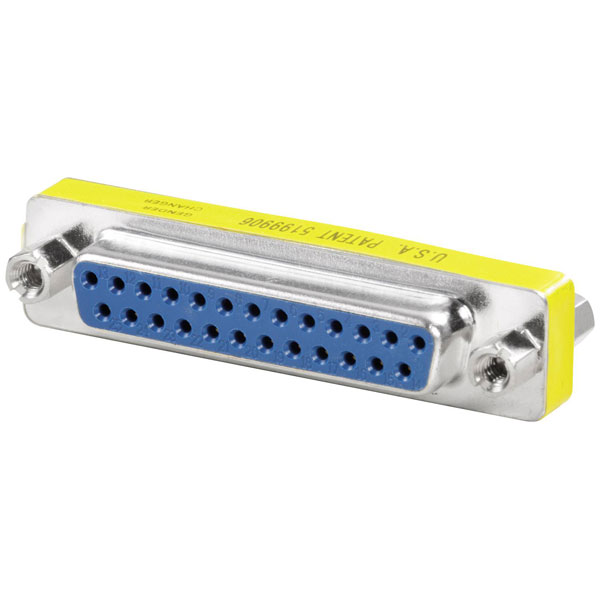

Weidmüller 1450880000 FrontCom Vario gender changer D-Sub 25-pin IP65

The Weidmüller FrontCom® gender changer is a D-Sub 25-pin connector with socket/socket configuration. It is designed for efficiently altering connection types in electronic equipment. Typical applications include telecommunications and network installations.

Type	IE-FCI-D25-FF
Plug / Socket	Socket
Mounting Type	BackShell Mounting
Mounting Direction	Straight
Connection Angle	180°
Casing	D-Sub
Certificate No. (DNV)	TAA000022B
Certificate No. (UR)	E497345
Colour	Other
Compatible with Grade2TV according to XP-C 90-483	false
Compatible with Grade3TV according to XP-C 90-483	false
Contact Resistance	= 20 mO
Contact surface	Gold-plated
Current-carrying capacity	3 A
Dielectric strength, contact / contact	1 kV eff /1 min.
Dim	(L x W x H) 53.1 x 12.5 x 17.6 mm
Dimensioned drawing	Dimensioned drawing
ECLASS 14.0	27-18-28-92
ECLASS 15.0	27-18-28-92
ETIM 10.0	EC001121
ETIM 8.0	EC001121
ETIM 9.0	EC001121
GTIN (EAN)	4050118255645
Height	17.6mm
Height (inches)	0.6929 inch
Hole spacing	47.04mm
Housing main material	SPCC
Housing surface	tin-plated
Insert type	Signal insert D-Sub, 25-
Insulation Resistance	1000 MO at 500 V DC
Length	53.1mm
Length (inches)	2.0905 inch
Material insulator	PBT glass fibre reinforced
Misc Attribute	IE-FCI-D25-FF
Model	Plug
Net weight	15g
Number of Poles	25
Pins	25
Protection degree	IP20
Qty.	1 items
REACH SVHC	Lead 7439-92-1
ROHS	Conform
RoHS Compliance Status	Compliant with exemption
SCIP	14f36bdb-8bcd-4f24-8fb3-9538ad1abec6
Special tool necessary	false
Storage temperature	Operating temperature
Suitable for flat cable	false
Suitable for litz wire conductor	false
Suitable for round cable	true
Suitable for solid conductors	true
Temperature Range	-55 - +105°C
Transparent	false
Type of connector	Other
UL File Number Search	UL Website
Version	FrontCom, Signal insert D-Sub, 25-pole, Socket /
Weight	19.68g
Width	12.5mm
Width (inches)	0.4921 inch
